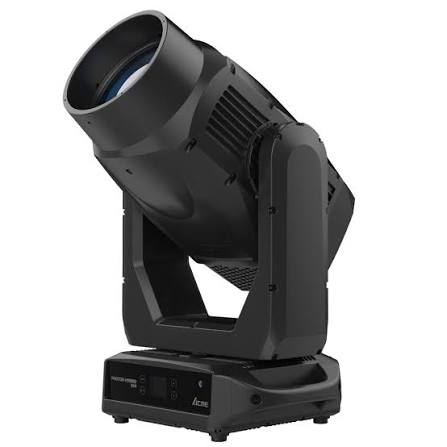

Photon Hybrid 500 (XL 500 BSW IP)
ACME
#8043Short Name: PHOTONHYBRID500
“IP66 ACME's first moving laser hybrid fixture, 350W white laser source, 180mm frontal lens. Three switchable zoom modes: Beam 0.9-22deg, Spot 3.5-29deg, Wash 4.5-40deg. CMY+CTO mixing, 16-color wheel, static gobo wheel (21 gobos), rotating gobo wheel (11 gobos), 4 overlayable prisms, frost filter. Sun Protection Mode and intelligent laser safety zone control.”
Physical
Weight32.5 kg
Length410 mm
Width330 mm
Height690 mm
IP RatingIP66
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.660 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR3, XLR5
Optical & Wheels
SourceHybrid BSW
EmittersRGB Laser (450W RGB Full-Color Laser Engine)
Lumens15,000 lm
CRI80
Zoom Min1.8°
Zoom Max40°
Color Wheels1 [16 colors + CRI, plus open]
Gobo Wheels2 [1 static (21 gobos), 1 rotating (11 gobos)]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard24 ch
Extended31 ch
