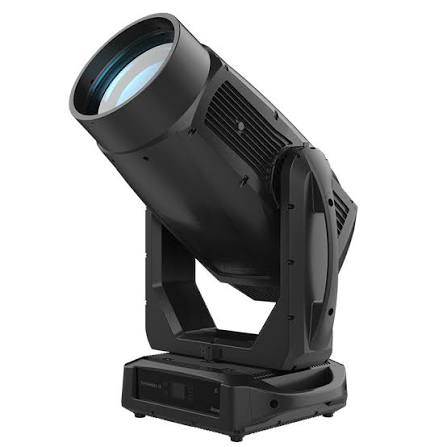

Supernova LT (XA 2000 BSWF IP LT)
ACME
#8042Short Name: SUPERNOVALT
“IP66 flagship long-throw hybrid moving light, 1800W LED engine, 70,000 lumens, 245mm frontal lens. Standard optical zoom 3.6-52.5deg, beam reducer mode 1.9-25deg, long-throw iris mode 0.9-5deg. CMY+CTO mixing, dual color wheels, dual rotating gobo wheels, graphic animation wheel, dual combinable prisms, dual frost filters, 4-blade framing (+/-60deg), motorized linear iris. Optional camera enclosure and manual follow-spot kit available.”
Physical
Weight52.5 kg
Length465 mm
Width352 mm
Height890 mm
IP RatingIP66
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.2200 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR3, XLR5, RJ45
Optical & Wheels
SourceProfile
EmittersCMY + Linear CTO + Color Wheel (6 colors + open)
Lumens65,000 lm
CRI70
Zoom Min4°
Zoom Max48°
Color Wheels2 [Wheel 1: 5 colors + open; Wheel 2: 3 colors + CRI, plus open]
Gobo Wheels2 [2 rotating gobo wheels, 5-6 gobos each, plus open]
Movement
Pan Range540°
Tilt Range246°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard34 ch
Extended54 ch
