Lineforce 5 IP (CYC 5 IP)
ACME
#8038Short Name: LINEFORCE5IP

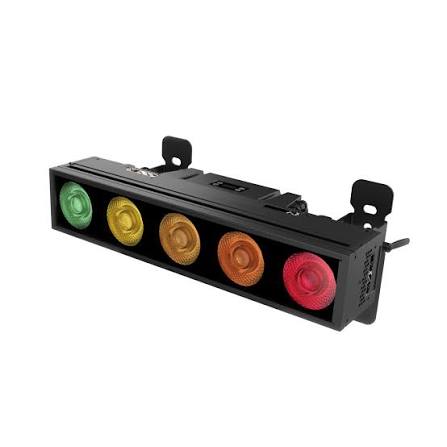

“IP66 compact half-meter linear multi-spectral fixture with 5x120W RGBWAC+UV LEDs, 14-55deg beam angle, patented 4-zone electronic frost system, tungsten emulation, individual pixel control, floor stands rotate 0-90deg for footlight use, interlocking connectors for building larger arrays.”
Physical
Weight8.6 kg
Length500 mm
Width150 mm
Height210 mm
IP RatingIP66
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.325 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBACL (Red, Green, Blue, Amber, Cyan, Lime Asymmetric Cyc)
Lumens8,470 lm
CRI90
Zoom Min60°
Zoom Max90°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
8 Channel8 ch
14 Channel14 ch
30 Channel30 ch
