Zonda 9 Wash
Ayrton
#794Short Name: ZONDA9WASH

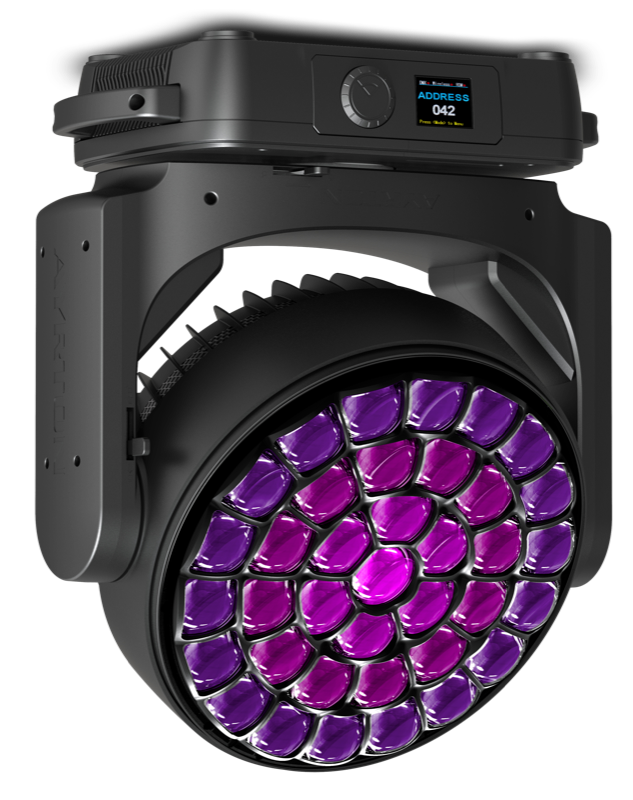

“Ayrton Zonda 9 Wash is a high-output 1400W RGBW LED wash fixture with 37x 40W LEDs, 3° to 50° zoom, and 25000 lumens output.”
Physical
Weight29.2 kg
Length494 mm
Width280 mm
Height730 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters37x 40W RGBW LED Engine
Lumens25,000 lm
CRI86
Zoom Min3°
Zoom Max50°
Color Wheels1 [94]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (26 ch)26 ch
Standard (37 ch)37 ch
Extended (54 ch)54 ch
