Zonda 9 FX
Ayrton
#793Short Name: ZONDA9FX

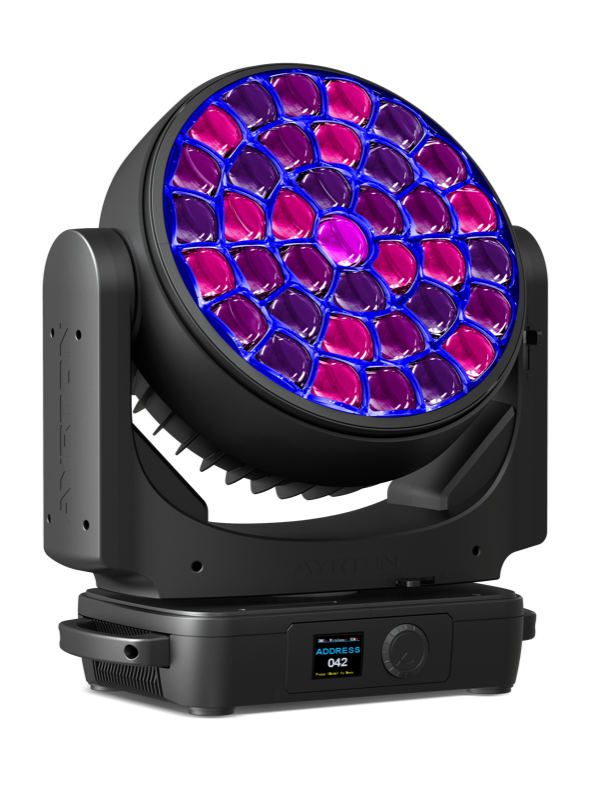

“Ayrton Zonda 9 FX is a massive 1400W LED moving head wash/beam luminaire with 37x 40W RGBW LEDs, 3° to 50° zoom, LiquidEffect FX ring, and continuous pan/tilt.”
Physical
Weight29.2 kg
Length494 mm
Width280 mm
Height730 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters37x 40W RGBW LED Engine + LiquidEffect FX Ring
Lumens25,000 lm
CRI86
Zoom Min3°
Zoom Max50°
Color Wheels1 [94]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (26 ch)26 ch
Standard (50 ch)50 ch
Extended 2A (51 ch)51 ch
Extended 2B (148 ch)148 ch
Extended (199 ch)199 ch
