Zonda 3 FX
Ayrton
#791Short Name: ZONDA3FX

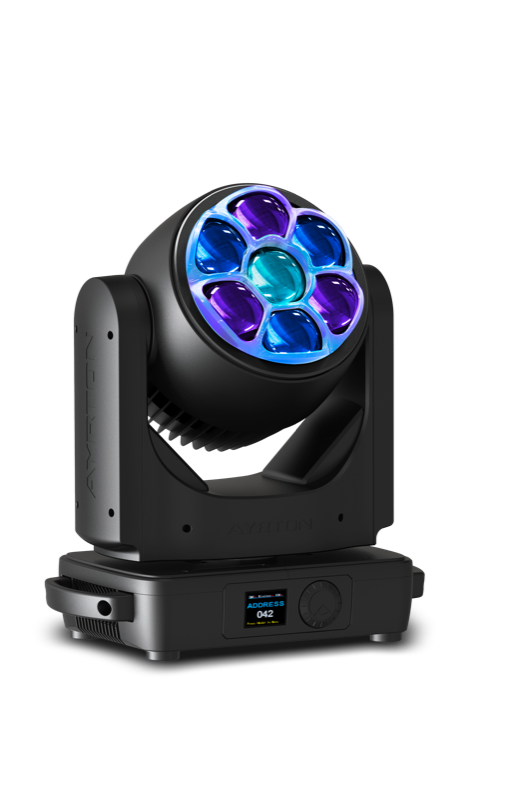

“Ayrton Zonda 3 FX is a compact moving head wash/beam luminaire with 7x 40W RGBW LEDs, 3° to 50° zoom, LiquidEffect FX ring, and continuous pan/tilt.”
Physical
Weight11.1 kg
Length365 mm
Width207 mm
Height480 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.350 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters7x 40W RGBW LED Engine + LiquidEffect FX Ring
Lumens5,200 lm
CRI86
Zoom Min3°
Zoom Max50°
Color Wheels1 [94]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (26 ch)26 ch
Standard (50 ch)50 ch
Extended (79 ch)79 ch
