WildSun 500K7
Ayrton
#786Short Name: WILDSUN500K7

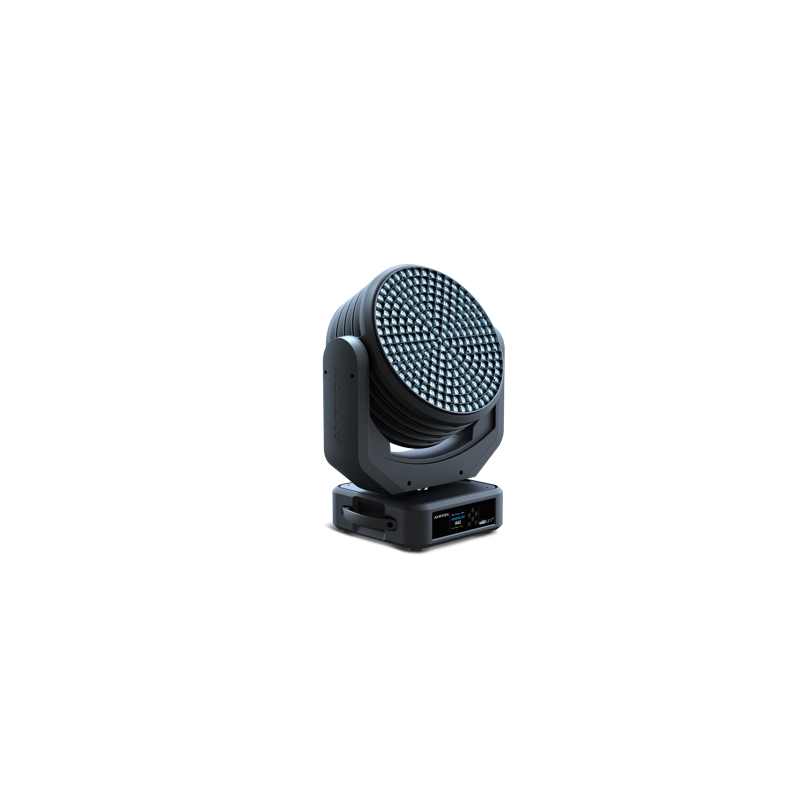

“Ayrton WildSun 500K7 is a 480W Daylight White 6700K LED wash luminaire delivering 18000 lumens with 11° to 45° zoom.”
Physical
Weight22.8 kg
Length371 mm
Width305 mm
Height520 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.480 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters31x 13W Daylight White LED Engine (6700K)
Lumens18,000 lm
CRI90
Zoom Min11°
Zoom Max45°
Color Wheels---
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (17 ch)17 ch
Standard (24 ch)24 ch
Extended Zone (48 ch)48 ch
Extended All (49 ch)49 ch
