Stradale Profile
Ayrton
#777Short Name: STRADALEPROF

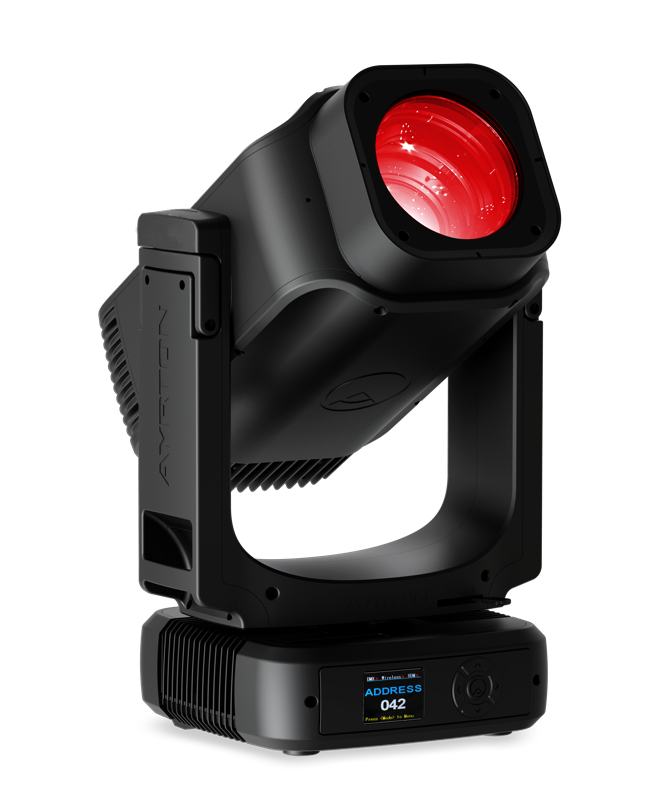

“Ayrton Stradale Profile is an IP65 mid-size 300W LED framing profile fixture with 4° to 55° zoom, continuous pan/tilt, and 20000 lumens output.”
Physical
Weight23.5 kg
Length283 mm
Width280 mm
Height586 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.630 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceSpot-Profile
Emitters300W White LED Engine (IP65 Framing Profile)
Lumens20,000 lm
CRI70
Zoom Min4°
Zoom Max55°
Color Wheels4 [8 | 2 | 2 | 10]
Gobo Wheels3 [10 | 11 | 1]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard (35 ch)35 ch
Extended (38 ch)38 ch
