Rollapix 100
Ayrton
#776Short Name: ROLLAPIX100

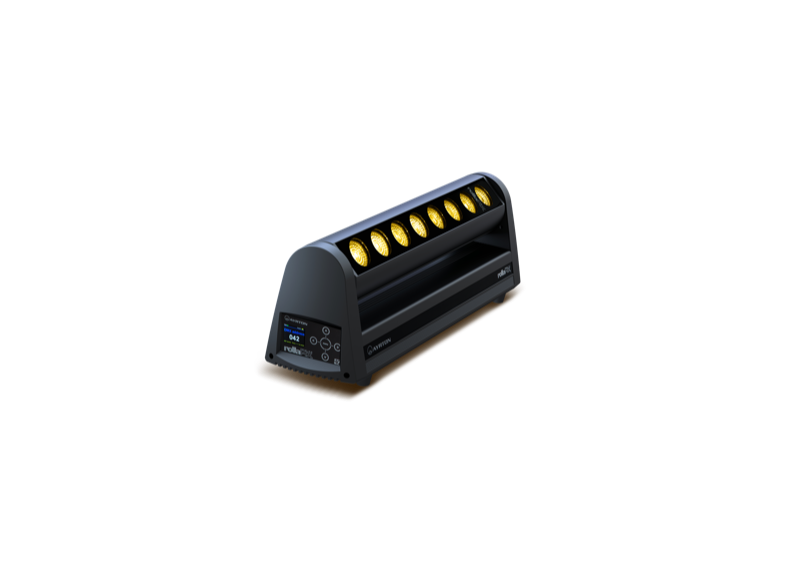

“Ayrton Rollapix 100 is a motorized tilt linear LED batten with 8x 15W RGBW LEDs, 8° to 32° zoom, and 270° motorized tilt.”
Physical
Weight9.2 kg
Length620 mm
Width166 mm
Height218 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.160 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceBar / Batten
Emitters8x 15W RGBW LED Engine (Motorized Tilt Batten)
Lumens2,500 lm
CRI85
Zoom Min8°
Zoom Max32°
Color Wheels1 [42]
Gobo Wheels---
Movement
Pan Range---
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 (6 ch)6 ch
Mode 2 (8 ch)8 ch
Mode 3 (11 ch)11 ch
Mode 4 (13 ch)13 ch
Mode 5 (17 ch)17 ch
Mode 6 (21 ch)21 ch
Mode 7 (36 ch)36 ch
Mode 8 (38 ch)38 ch
Mode 9 (45 ch)45 ch
