NandoBeam S9
Ayrton
#771Short Name: NANDOBEAMS9

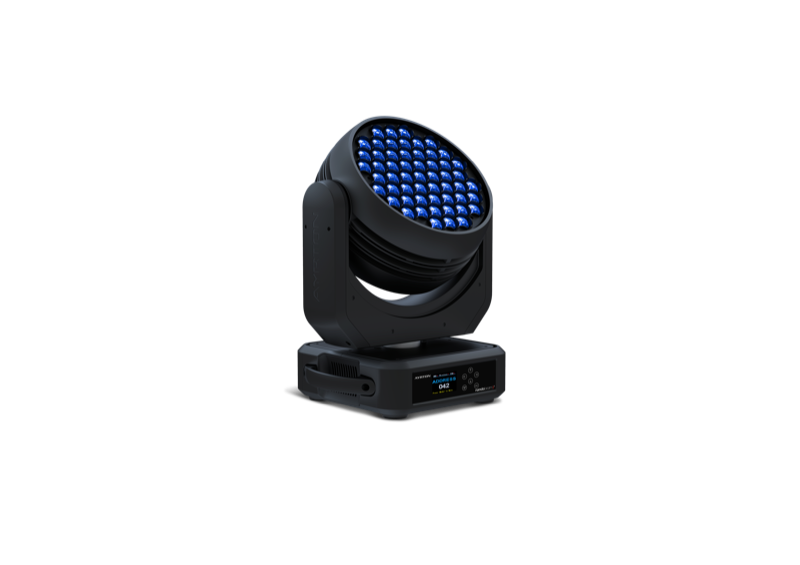

“Ayrton NandoBeam S9 is a high-output 975W RGBW LED wash luminaire with 55x 15W LEDs, 8° to 40° zoom, and 12000 lumens output.”
Physical
Weight21.1 kg
Length412 mm
Width322 mm
Height520 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.975 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters55x 15W RGBW LED Engine
Lumens12,000 lm
CRI85
Zoom Min8°
Zoom Max40°
Color Wheels1 [21]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (17 ch)17 ch
Standard (17 ch)17 ch
Extended (38 ch)38 ch
