Nando 502 Wash
Ayrton
#768Short Name: NANDO502

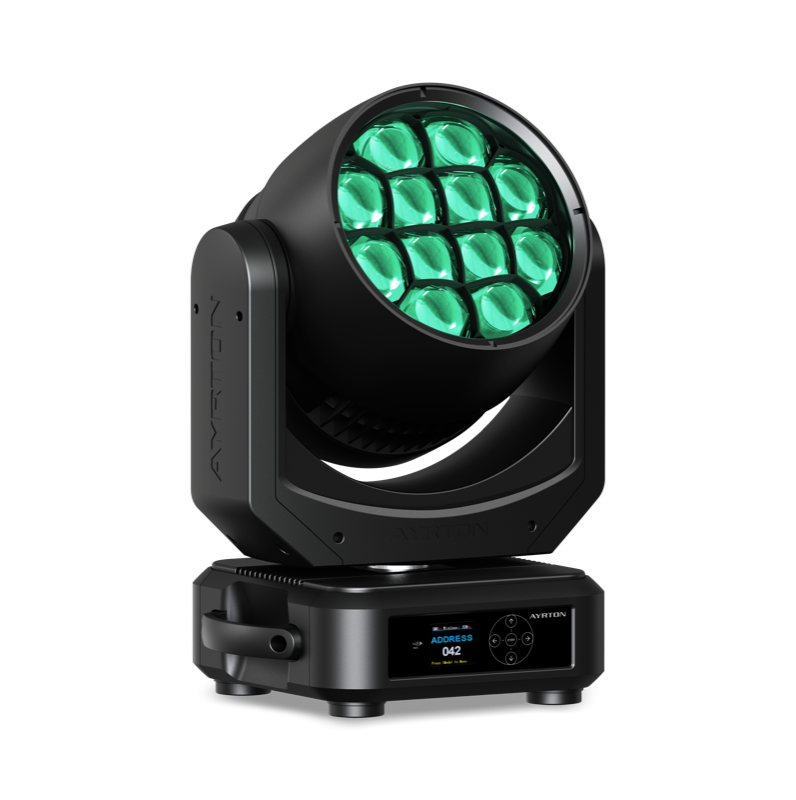

“Ayrton Nando 502 Wash is an IP65 moving head wash luminaire with 12x 40W RGBL LEDs, 3.5° to 65° zoom, and LiquidEffect ring.”
Physical
Weight15.6 kg
Length327 mm
Width268 mm
Height480 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.550 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters12x 40W RGBL LED Engine (LiquidEffect Ring)
Lumens10,000 lm
CRI86
Zoom Min3.5°
Zoom Max65°
Color Wheels1 [100]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (26 ch)26 ch
Standard (37 ch)37 ch
Ring (46 ch)46 ch
Pixel (86 ch)86 ch
