MiniPanel FX
Ayrton
#766Short Name: MINIPANELFX

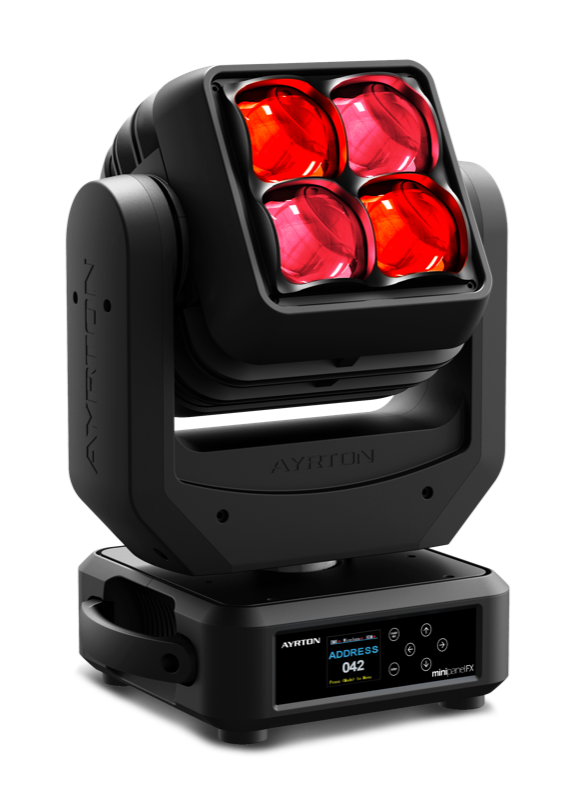

“Ayrton MiniPanel FX is a 2x2 matrix moving head with 4x 15W RGBW LEDs, 3.6° to 53° zoom, and continuous pan/tilt rotation.”
Physical
Weight8.9 kg
Length285 mm
Width220 mm
Height87 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.220 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters4x 15W RGBW LED Engine (2x2 Matrix)
Lumens2,400 lm
CRI85
Zoom Min3.6°
Zoom Max53°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (19 ch)19 ch
Standard (22 ch)22 ch
Extended (34 ch)34 ch
