MiniBurst
Ayrton
#765Short Name: MINIBURST

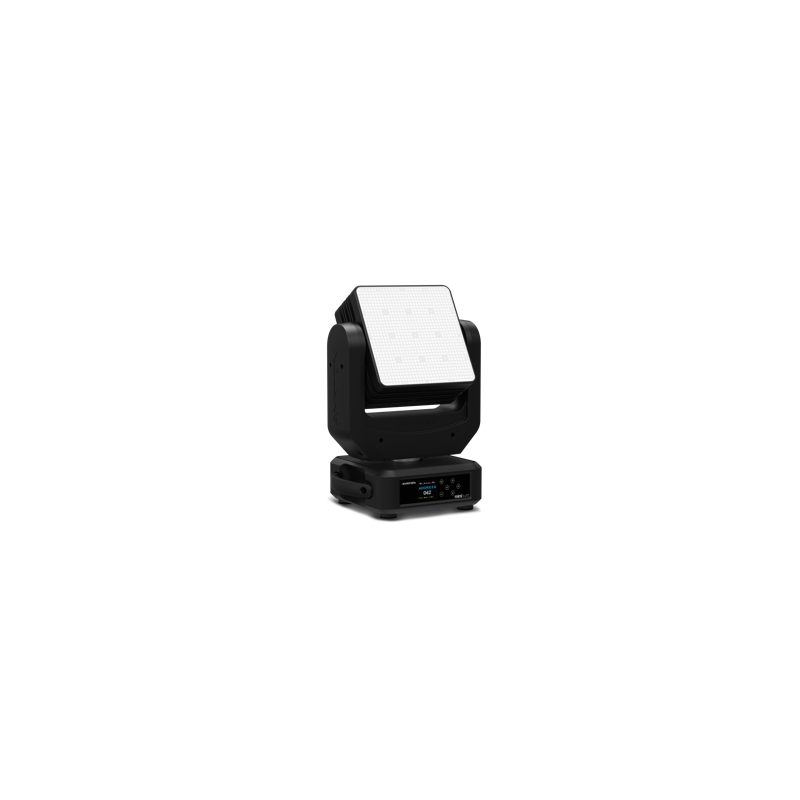

“Ayrton MiniBurst is a compact motorized strobe luminaire with 960 white LEDs (16 pixels) delivering 60000 lumens with continuous pan/tilt.”
Physical
Weight8.5 kg
Length285 mm
Width220 mm
Height89 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.350 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceStrobe / Flood
Emitters960x High-Power White LED Strobe (16 Pixels)
Lumens60,000 lm
CRI85
Zoom Min120°
Zoom Max120°
Color Wheels---
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (12 ch)12 ch
Standard (14 ch)14 ch
Extended Low (29 ch)29 ch
Extended (59 ch)59 ch
