Merak

Merak

Ayrton

#764
Short Name: MERAK

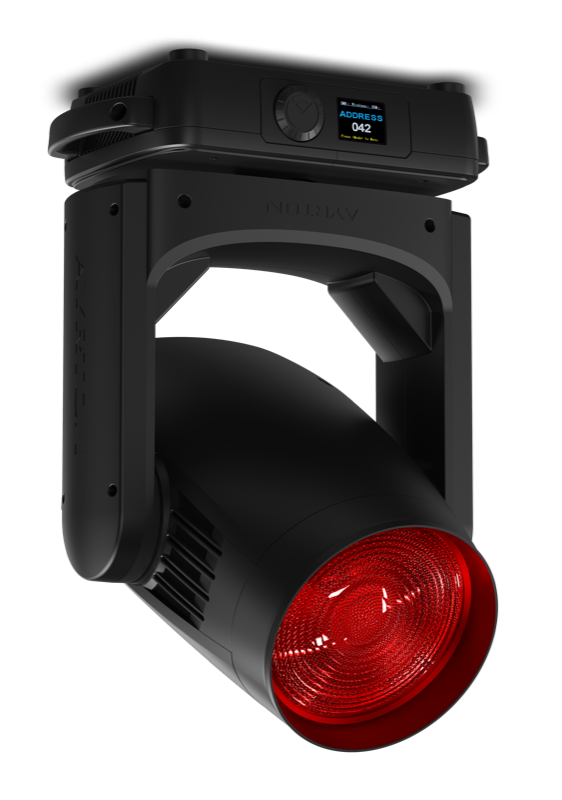

“Ayrton Merak is a compact 250W RGBW LED wash luminaire with 7° to 70° zoom and 4500 lumens output.”

Physical

Weight13.8 kg
Length347 mm
Width210 mm
Height580 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C

Electrical

Power Consump.400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON

Optical & Wheels

SourceWash
Emitters250W RGBW LED Engine (Wash)
Lumens4,500 lm
CRI86
Zoom Min7°
Zoom Max70°
Color Wheels2 [9 | 23]
Gobo Wheels---

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Basic (18 ch)18 ch
Standard (21 ch)21 ch
Extended (28 ch)28 ch
