Mamba
Ayrton
#763Short Name: MAMBA

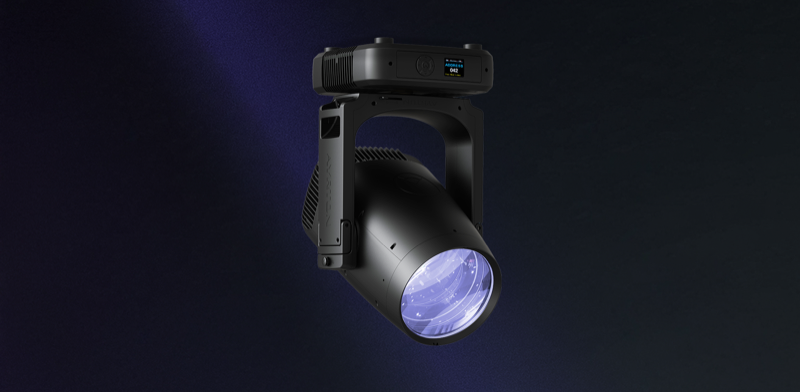

“Ayrton Mamba is an IP65 phosphor laser beam/FX luminaire with a 0.7° to 15° zoom, continuous pan/tilt, and 20400 lumens output.”
Physical
Weight41 kg
Length365 mm
Width365 mm
Height715 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.800 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceHybrid BSW
EmittersPhosphor Laser Light Engine (Beam/FX)
Lumens20,400 lm
CRI67
Zoom Min0.7°
Zoom Max15°
Color Wheels5 [23 | 5 | 5 | 3 | 3]
Gobo Wheels3 [13 | 81 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard (35 ch)35 ch
Extended (47 ch)47 ch
