MagicRing R9
Ayrton
#762Short Name: MAGICRINGR9

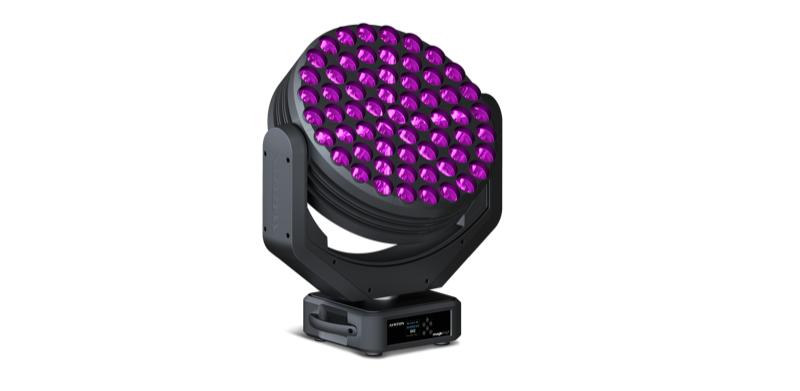

“Ayrton MagicRing R9 is an enormous continuous pan/tilt luminaire with 61 independently controlled 15W RGBW LEDs in concentric rings.”
Physical
Weight48.7 kg
Length717 mm
Width496 mm
Height144 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.990 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters61x 15W RGBW LED Engine (Concentric Rings)
Lumens26,000 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [22]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (256 ch)256 ch
