MagicRing R1
Ayrton
#761Short Name: MAGICRINGR1

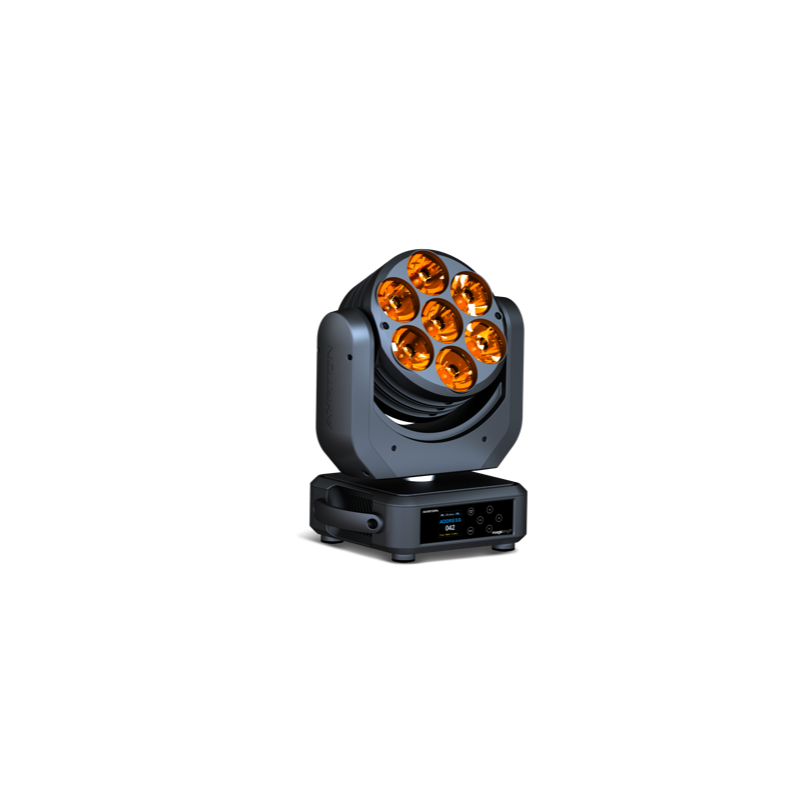

“Ayrton MagicRing R1 is a compact continuous pan/tilt luminaire with 7x 15W RGBW LEDs in a ring configuration and 4.5° optics.”
Physical
Weight8 kg
Length275 mm
Width220 mm
Height88 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.150 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters7x 15W RGBW LED Engine (Ring Array)
Lumens2,500 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [23]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (44 ch)44 ch
