MagicPanel R
Ayrton
#760Short Name: MAGICPANELR

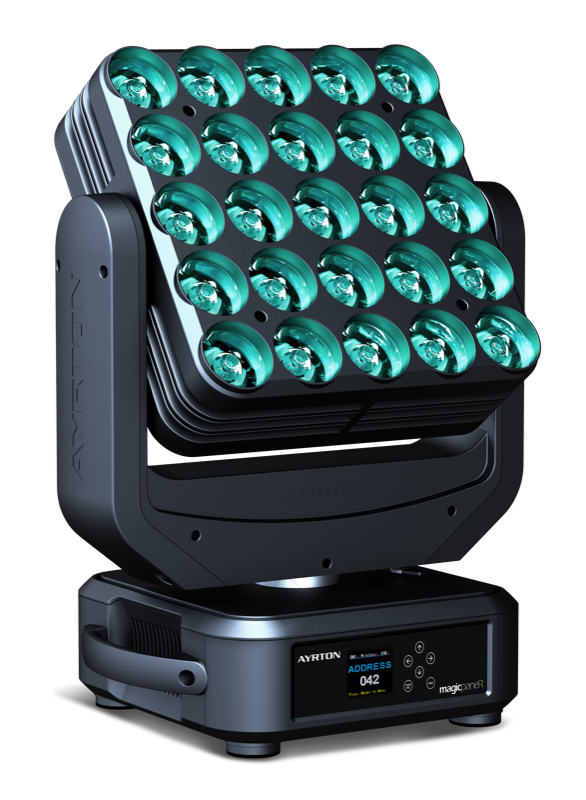

“Ayrton MagicPanel R is a 5x5 matrix moving head with 25x 15W RGBW LEDs, 4.5° narrow beams, and continuous pan/tilt rotation.”
Physical
Weight20.5 kg
Length427 mm
Width326 mm
Height102 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.450 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters25x 15W RGBW LED Engine (5x5 Matrix)
Lumens10,625 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Extended Continuous (16 ch)16 ch
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (116 ch)116 ch
Extended VDim (116 ch)116 ch
