MagicPanel FX
Ayrton
#759Short Name: MAGICPANELFX

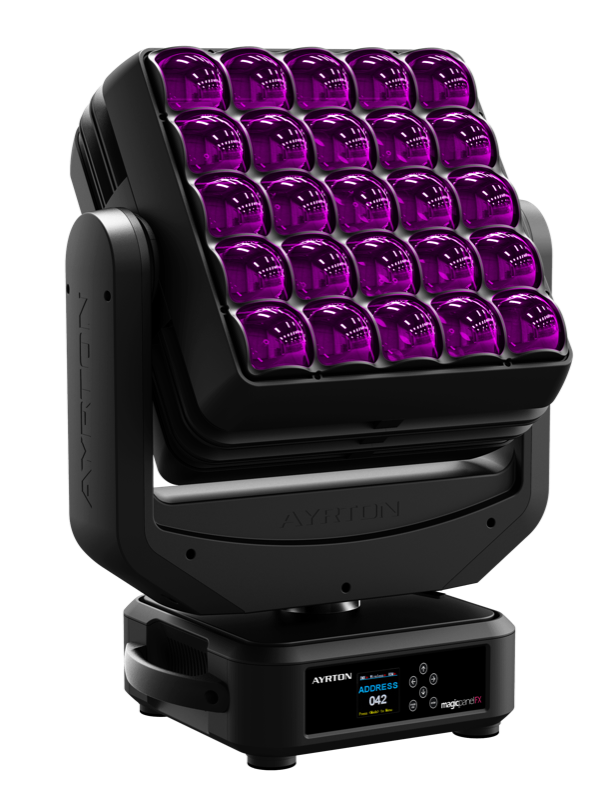

“Ayrton MagicPanel FX is a 5x5 matrix moving panel with 25 independently controlled 15W RGBW LEDs, 3.6° to 53° zoom, and continuous pan/tilt rotation.”
Physical
Weight28.7 kg
Length486 mm
Width392 mm
Height112 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1000 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters25x 15W RGBW LED Engine (5x5 Matrix)
Lumens13,500 lm
CRI85
Zoom Min3.6°
Zoom Max53°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (19 ch)19 ch
Standard (22 ch)22 ch
Extended (118 ch)118 ch
