MagicPanel 602
Ayrton
#758Short Name: MAGICPANEL602

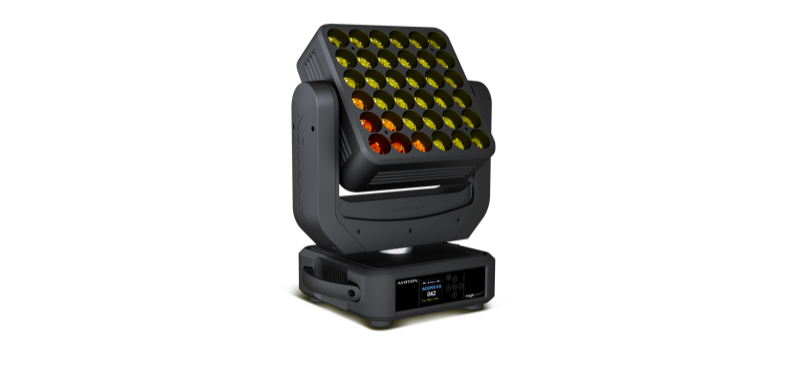

“Ayrton MagicPanel 602 is a 6x6 matrix moving panel with 36 independently controlled 15W RGBW LEDs (600W), 7.5° optics, and continuous pan/tilt rotation.”
Physical
Weight18.2 kg
Length313 mm
Width313 mm
Height450 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.600 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters36x 15W RGBW LED Engine (6x6 Matrix)
Lumens14,000 lm
CRI85
Zoom Min7.5°
Zoom Max7.5°
Color Wheels1 [40]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (160 ch)160 ch
