MagicDot R
Ayrton
#755Short Name: MAGICDOTR

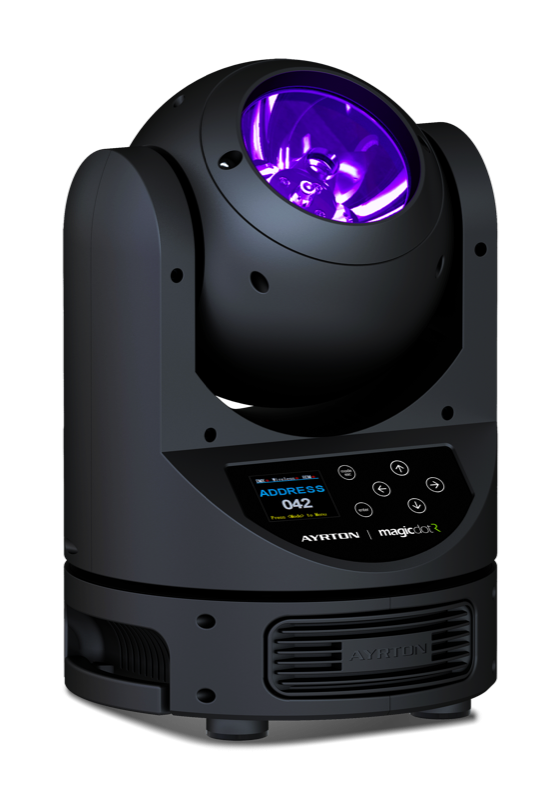

“Ayrton MagicDot R is an ultra-fast moving head luminaire with a 60W RGBW LED, 94mm optic (4.5° beam), and continuous pan/tilt rotation.”
Physical
Weight5.3 kg
Length210 mm
Width210 mm
Height318 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.130 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceBeam
Emitters1x 60W RGBW LED Engine (94mm Collimator)
Lumens1,600 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [21]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (15 ch)15 ch
Standard (17 ch)17 ch
