MagicDot Neo
Ayrton
#754Short Name: MAGICDOTNEO

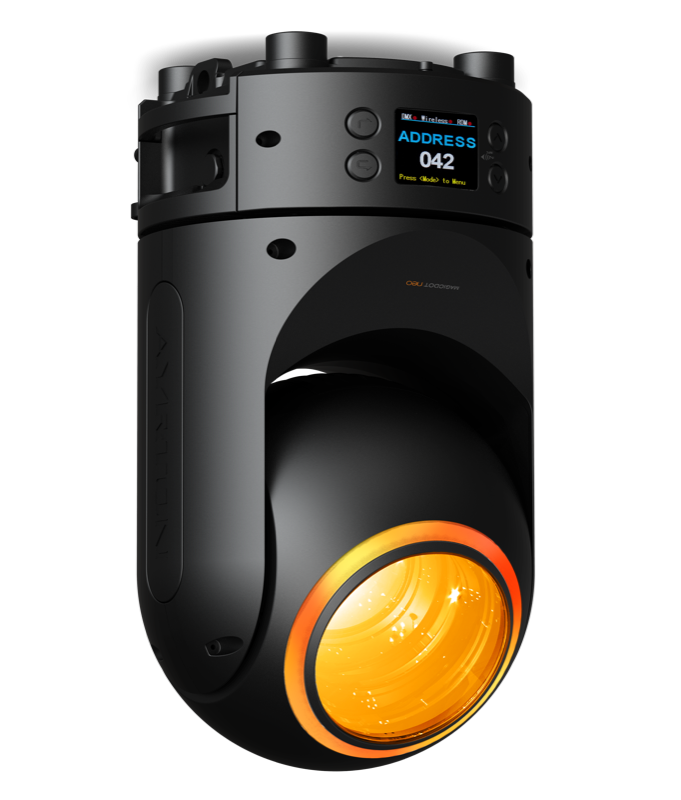

“Ayrton MagicDot Neo is an IP65 moving head fixture featuring a 100W RGBL LED emitter with a 3° to 30° zoom and continuous pan/tilt.”
Physical
Weight6.6 kg
Length197 mm
Width197 mm
Height350 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.160 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceBeam
Emitters1x 100W RGBL LED Engine + Ring
Lumens3,000 lm
CRI88
Zoom Min3°
Zoom Max30°
Color Wheels---
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Extended (26 ch)26 ch
Extended Pixel (29 ch)29 ch
