MagicBurst
Ayrton
#753Short Name: MAGICBURST

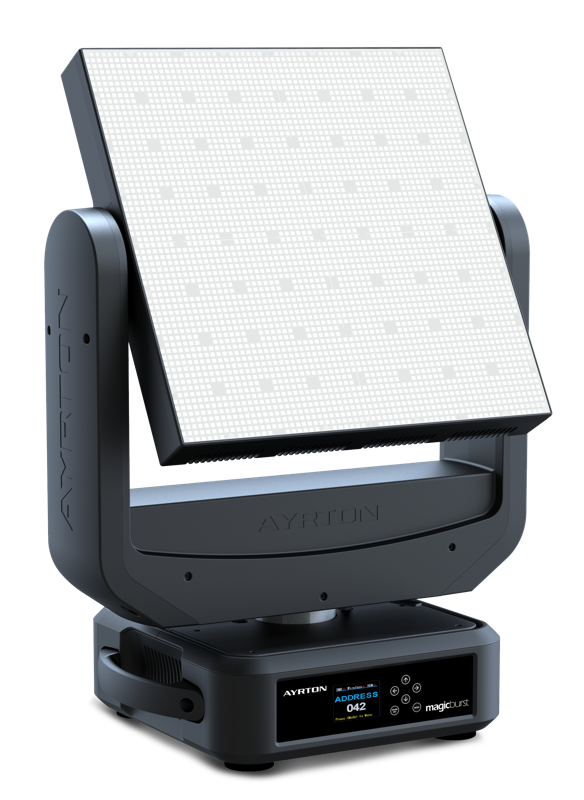

“Ayrton MagicBurst is a continuous pan/tilt high-speed motorized strobe luminaire delivering 240000 lumens via 3840 white LEDs with 64 individual pixel zones.”
Physical
Weight18.9 kg
Length473 mm
Width112 mm
Height430 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceStrobe / Flood
Emitters3840x High-Power White LED Strobe (64 Pixels)
Lumens240,000 lm
CRI85
Zoom Min120°
Zoom Max120°
Color Wheels---
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (12 ch)12 ch
Standard (14 ch)14 ch
Extended (203 ch)203 ch
Extended 2 (203 ch)203 ch
