MagicBlade R
Ayrton
#752Short Name: MAGICBLADER

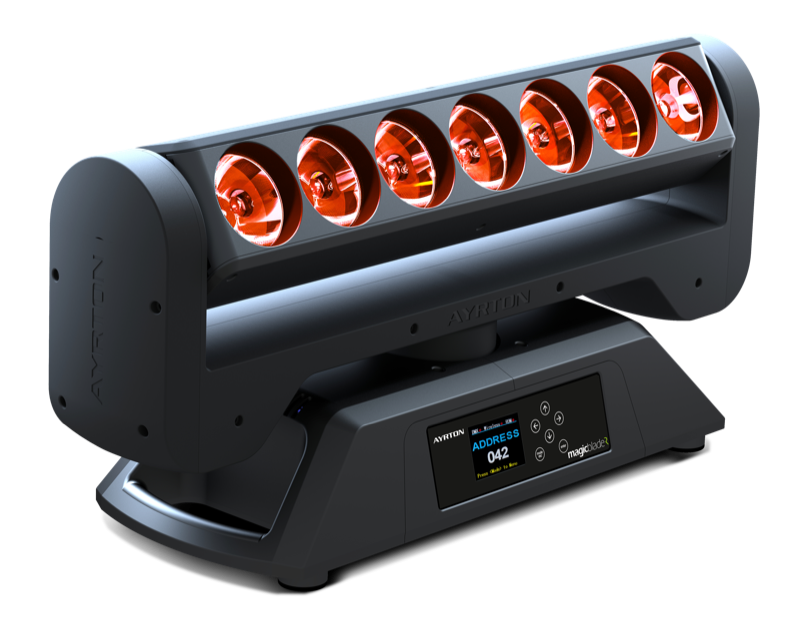

“Ayrton MagicBlade R is the original continuous pan/tilt linear LED luminaire with 7x 15W RGBW LEDs and 4.5° narrow beams.”
Physical
Weight13 kg
Length612 mm
Width191 mm
Height312 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceBar / Batten
Emitters7x 15W RGBW LED Engine
Lumens3,800 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [40]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Extended Continuous (16 ch)16 ch
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (44 ch)44 ch
