MagicBlade FX
Ayrton
#751Short Name: MAGICBLADEFX

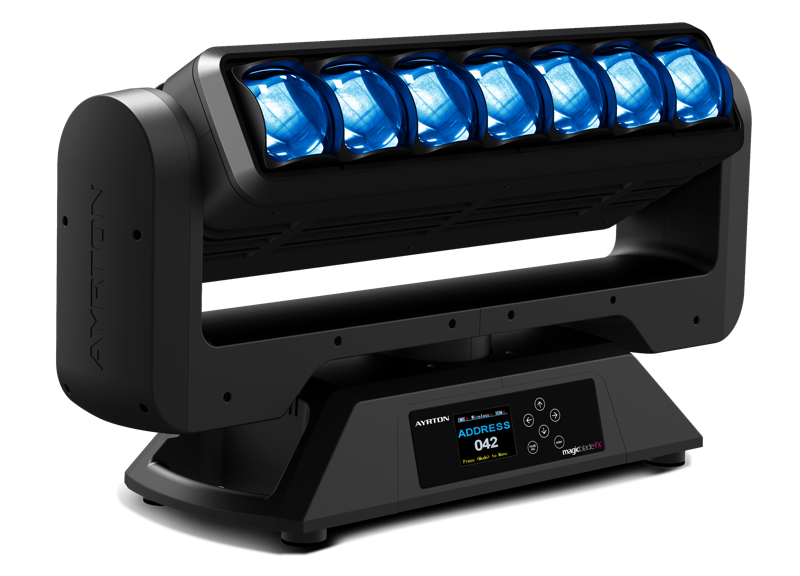

“Ayrton MagicBlade FX is a motorized linear LED batten with 7 independently controlled 15W RGBW LEDs, 3.6° to 53° zoom, and continuous pan/tilt.”
Physical
Weight13 kg
Length612 mm
Width191 mm
Height312 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceBar / Batten
Emitters7x 15W RGBW LED Engine (In-Line Array)
Lumens3,800 lm
CRI85
Zoom Min3.6°
Zoom Max53°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (19 ch)19 ch
Standard (22 ch)22 ch
Extended (46 ch)46 ch
Extended VDim (46 ch)46 ch
