MadDesign
Ayrton
#750Short Name: MADDESIGN

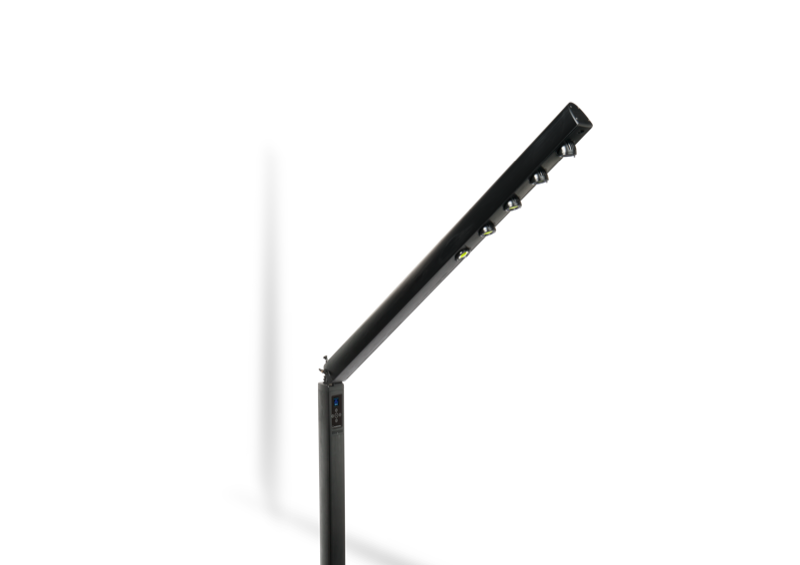

“Ayrton MadDesign is an architectural decorative RGBW LED lamp post with independent zone control.”
Physical
Weight42 kg
Length965 mm
Width1143 mm
Height2616 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.120 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5
Optical & Wheels
SourceWash
EmittersRGBW Decorative LED Lamp Post
Lumens2,000 lm
CRI90
Zoom Min180°
Zoom Max180°
Color Wheels1 [41]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 3 (8 ch)8 ch
Mode 4 (7 ch)7 ch
Mode 5 (8 ch)8 ch
Mode 6 (11 ch)11 ch
Mode 7 (23 ch)23 ch
Mode 8 (24 ch)24 ch
Mode 9 (27 ch)27 ch
