Kyalami
Ayrton
#748Short Name: KYALAMI

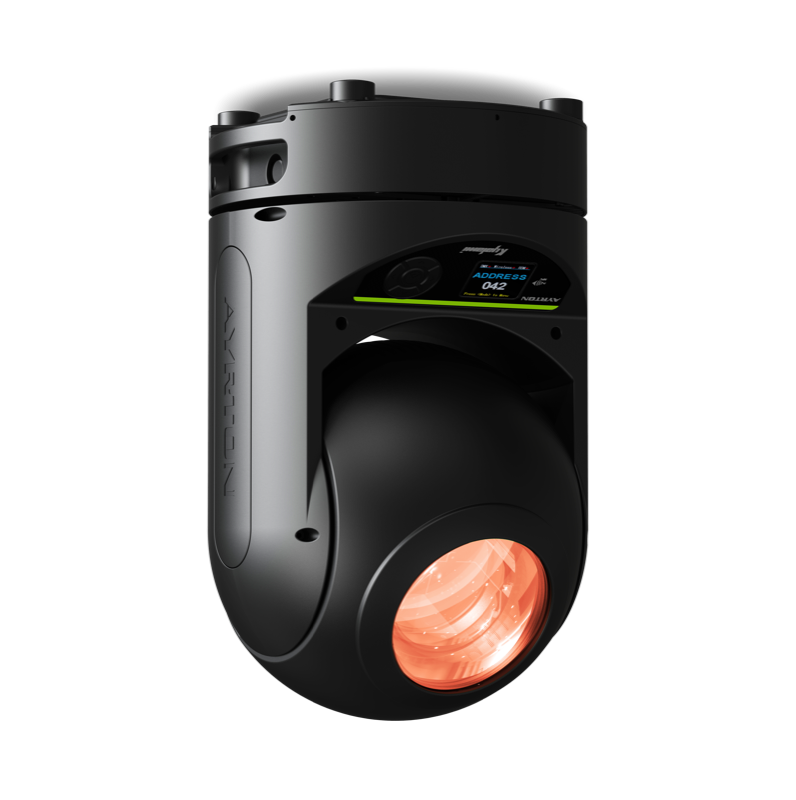

“Ayrton Kyalami is an ultra-compact IP65 phosphor laser beam luminaire with a 126mm front lens, 1.0° beam, continuous pan/tilt, and high-speed prisms.”
Physical
Weight14.5 kg
Length265 mm
Width265 mm
Height420 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.200 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceBeam
Emitters100W Phosphor Laser Engine (126mm Front Lens)
Lumens10,000 lm
CRI70
Zoom Min1°
Zoom Max1°
Color Wheels3 [23 | 2 | 2]
Gobo Wheels1 [30]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard (26 ch)26 ch
Extended (33 ch)33 ch
