Khamsin
Ayrton
#747Short Name: KHAMSIN

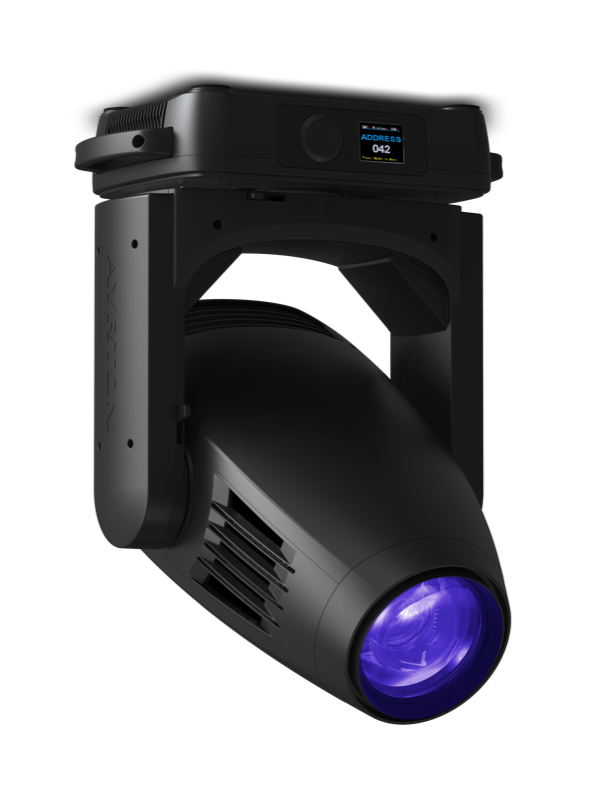

“Ayrton Khamsin is an automated 750W LED profile fixture with framing system, dual gobo wheels, 7.8° to 58° zoom, and 40000 lumens output.”
Physical
Weight39.8 kg
Length494 mm
Width280 mm
Height733 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1150 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceSpot-Profile
Emitters750W White LED Engine (Stage / True Color)
Lumens40,000 lm
CRI70
Zoom Min7.8°
Zoom Max58°
Color Wheels4 [7 | 3 | 2 | 2]
Gobo Wheels3 [7 | 7 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (40 ch)40 ch
Standard (42 ch)42 ch
Extended (64 ch)64 ch
