Karif LT
Ayrton
#746Short Name: KARIFLT

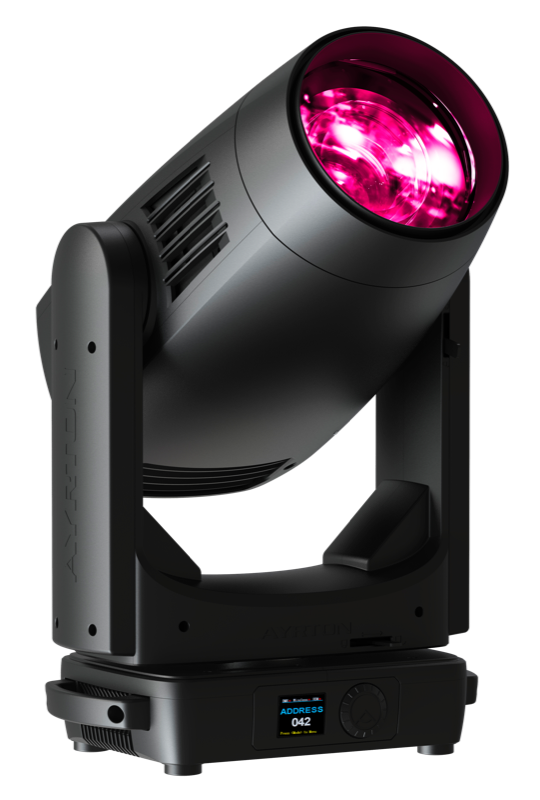

“Ayrton Karif LT is a compact 300W LED beam/spot luminaire with continuous pan/tilt rotation, 2.8° to 49° zoom, bi-rotational animation wheel, and 14000 lumens output.”
Physical
Weight27 kg
Length365 mm
Width211 mm
Height592 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.550 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceHybrid BSW
Emitters300W White LED Engine (Beam/Spot)
Lumens14,000 lm
CRI70
Zoom Min2.8°
Zoom Max49°
Color Wheels7 [13 | 2 | 2 | 2 | 2 | 3 | 3]
Gobo Wheels3 [10 | 42 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard Low (30 ch)30 ch
Basic (32 ch)32 ch
Standard (34 ch)34 ch
Extended (46 ch)46 ch
