Intellipix R
Ayrton
#744Short Name: INTELLIPIXR

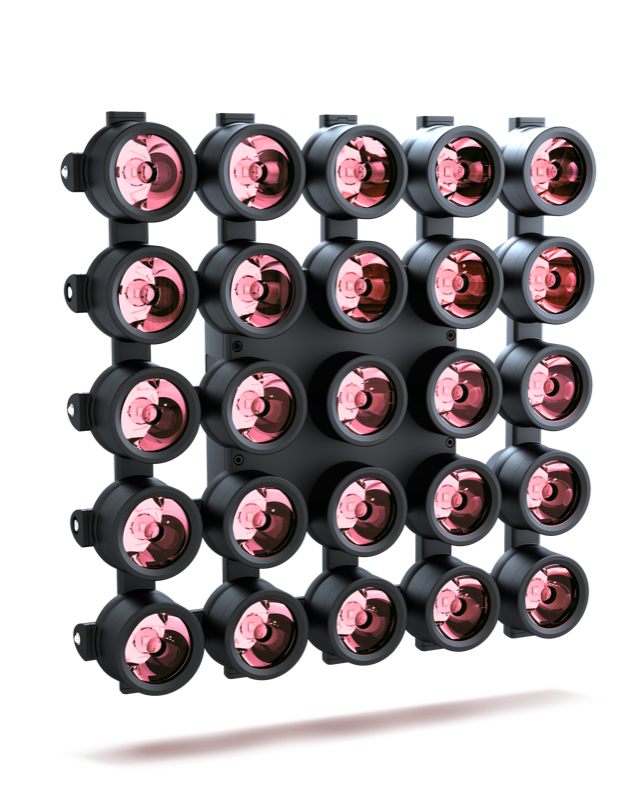

“Ayrton Intellipix R is an IP65 modular 5x5 beam panel luminaire with 25 independently controllable 15W RGBW LEDs and 4.5° optics.”
Physical
Weight11.2 kg
Length500 mm
Width500 mm
Height119 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.375 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceMatrix (Pixel Effect)
Emitters25x 15W RGBW LED Engine (5x5 Matrix)
Lumens10,500 lm
CRI85
Zoom Min4.5°
Zoom Max4.5°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (6 ch)6 ch
Standard (13 ch)13 ch
Extended (109 ch)109 ch
