IceColor 500
Ayrton
#743Short Name: ICECOLOR500

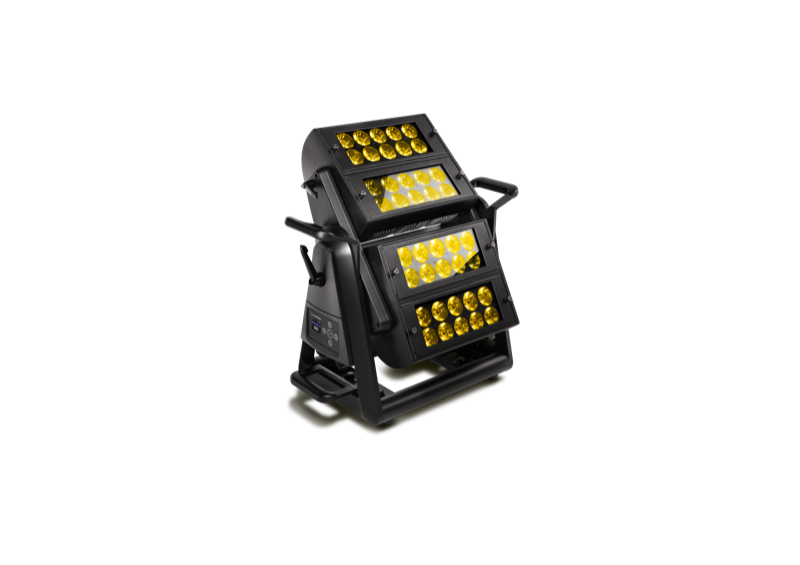

“Ayrton IceColor 500 is an IP65 mid-size architectural LED wash fixture with 40x 10W RGBW LEDs delivering 10000 lumens.”
Physical
Weight36 kg
Length500 mm
Width250 mm
Height100 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.400 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Power/Data
Optical & Wheels
SourceWash
Emitters40x 10W RGBW LED Engine
Lumens10,000 lm
CRI85
Zoom Min11°
Zoom Max11°
Color Wheels1 [29]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 (4 ch)4 ch
Mode 2 (5 ch)5 ch
Mode 3 (12 ch)12 ch
Mode 4 (8 ch)8 ch
Mode 5 (9 ch)9 ch
Mode 6 (16 ch)16 ch
Mode 7 (16 ch)16 ch
Mode 8 (17 ch)17 ch
Mode 9 (24 ch)24 ch
