DreamPanel Twin
Ayrton
#734Short Name: DREAMPANELTWIN

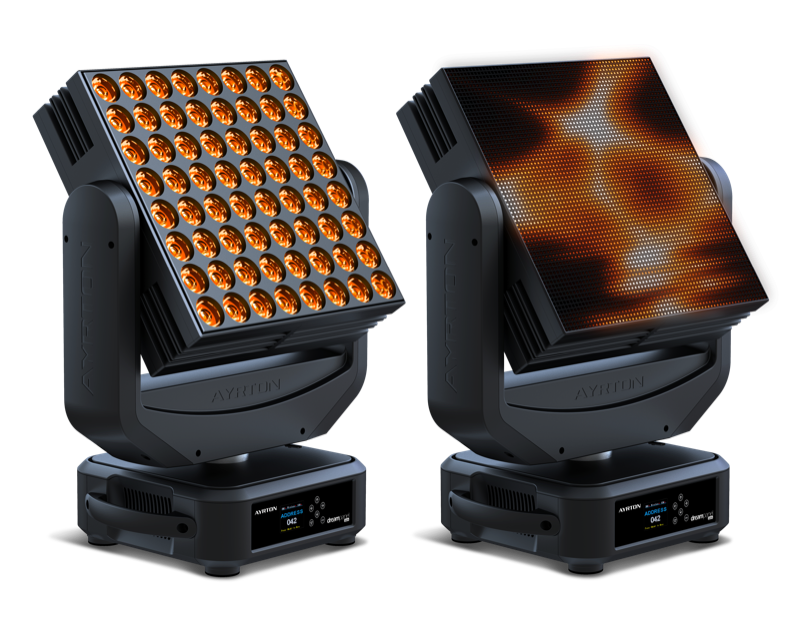

“Ayrton DreamPanel Twin is a hybrid double-sided luminaire with a 64x64 video display on side A and an 8x8 MagicPanel beam matrix on side B with continuous pan/tilt.”
Physical
Weight15.6 kg
Length473 mm
Width392 mm
Height107 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.200 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, RJ45
Optical & Wheels
SourceMatrix (Pixel Effect)
EmittersSide A: 64x64 Video / Side B: MagicPanel 8x8 Beams
Lumens6,000 lm
CRI85
Zoom Min180°
Zoom Max180°
Color Wheels1 [25]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (18 ch)18 ch
Standard (20 ch)20 ch
Extended (272 ch)272 ch
