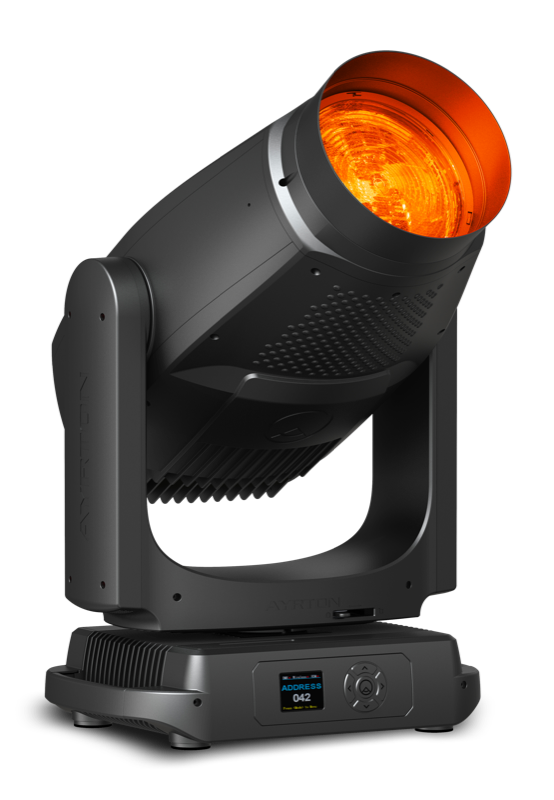

Domino Wash
Ayrton
#732Short Name: DOMINOWASH
“Ayrton Domino Wash is an IP65 1000W LED wash/Fresnel luminaire with 4-blade framing shutters, 6.2° to 66° zoom, and 52000 lumens output.”
Physical
Weight52 kg
Length490 mm
Width342 mm
Height840 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.1600 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5, etherCON
Optical & Wheels
SourceWash
Emitters1000W White LED Engine (Wash/Fresnel)
Lumens52,000 lm
CRI70
Zoom Min6.2°
Zoom Max66°
Color Wheels3 [7 | 2 | 94]
Gobo Wheels2 [8 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (37 ch)37 ch
Standard (39 ch)39 ch
Extended (61 ch)61 ch
