Diablo
Ayrton
#729Short Name: DIABLO

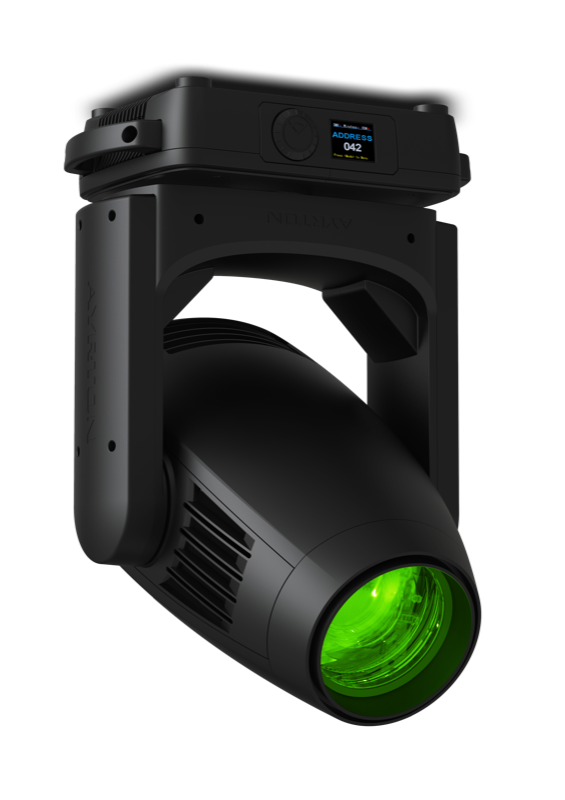

“Ayrton Diablo is an ultra-compact 300W LED profile moving head featuring framing blades, 6.7° to 53° zoom, and 19000 lumens output.”
Physical
Weight21.8 kg
Length365 mm
Width211 mm
Height592 mm
IP RatingIP20
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.550 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceSpot-Profile
Emitters300W White LED Engine (Stage / True Color)
Lumens19,000 lm
CRI70
Zoom Min6.7°
Zoom Max53°
Color Wheels2 [8 | 2]
Gobo Wheels2 [8 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic (34 ch)34 ch
Standard (36 ch)36 ch
Extended (56 ch)56 ch
