Arcaline 2 3G 1M
Ayrton
#720Short Name: ARCALINE1M

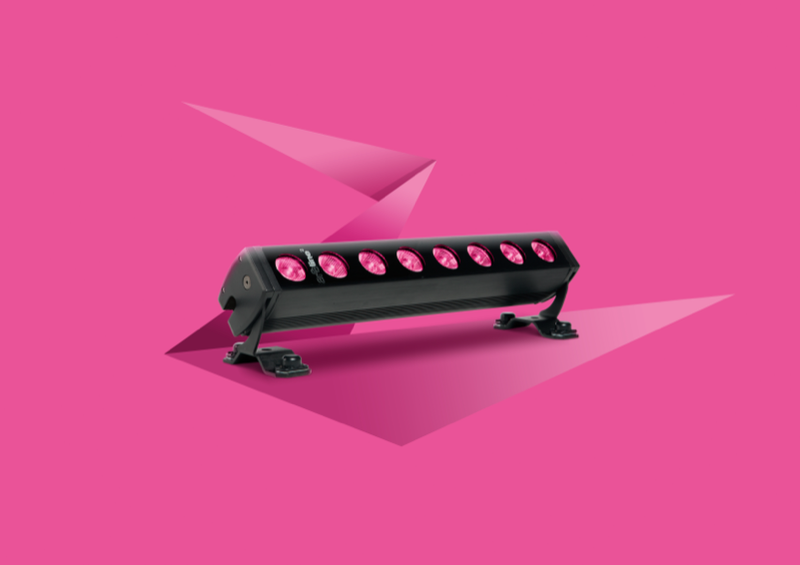

“Ayrton Arcaline 2 3G 1M is a 1m IP65-rated outdoor linear LED batten with RGBW color mixing delivering 4000 lumens.”
Physical
Weight8.2 kg
Length1020 mm
Width78 mm
Height94 mm
IP RatingIP65
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.100 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorIP65 Power/Data
Optical & Wheels
SourceBar / Batten
EmittersRGBW LED Engine
Lumens4,000 lm
CRI85
Zoom Min23°
Zoom Max23°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 (4 ch)4 ch
Mode 2 (5 ch)5 ch
Mode 3 (7 ch)7 ch
Mode 4 (8 ch)8 ch
Mode 5 (9 ch)9 ch
Mode 6 (11 ch)11 ch
