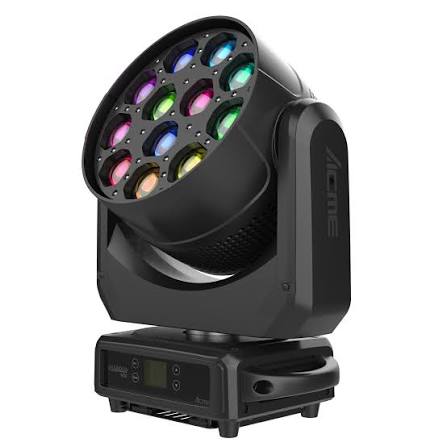

Diabolo 500 (WASH 500)
ACME
#70Short Name: DIABOLO500
“ACME DIABOLO 500(WASH 500) 490W”
Physical
Weight18.5 kg
Length380 mm
Width280 mm
Height520 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.475 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceWash / PAR
EmittersRGBW (7x 60W RGBW LED)
Lumens14,000 lm
CRI---
Zoom Min4°
Zoom Max50°
Color Wheels1 [34]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range220°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard14 ch
Extended22 ch
