HydraPanel
Astera
#651Short Name: HYDRAPANEL

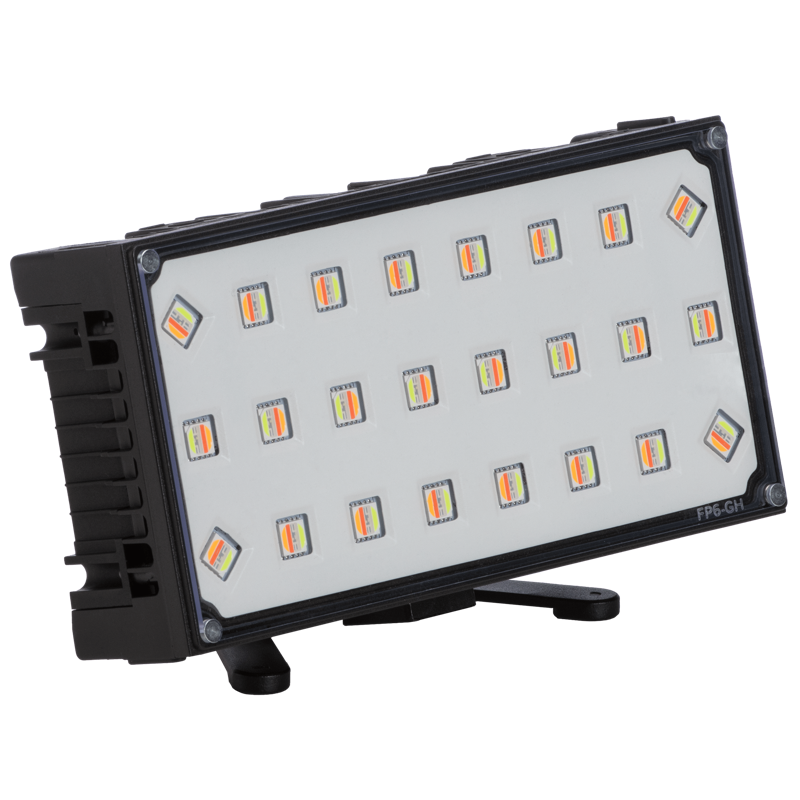

“Astera FP6 HydraPanel is a 25W wireless LED beam panel featuring 6 Titan Engine pixels, magnetic beam modifiers, and IP65 rating.”
Physical
Weight0.6 kg
Length166 mm
Width85 mm
Height43 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.25 W
Voltage24V - 24V
Frequency---
ConnectorDC Barrel
Optical & Wheels
SourceSoftlight / Panel
EmittersTitan LED Engine (RGB + Mint + Amber, 6 Pixels)
Lumens1,300 lm
CRI96
Zoom Min100°
Zoom Max100°
Color Wheels1 [151]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1: RGB4 ch
2: RGBW5 ch
3: RGBAW6 ch
4: DIM RGB4 ch
5: DIM RGBW5 ch
6: DIM RGBAW6 ch
7: RGB CCT DIM IND6 ch
8: RGBS5 ch
9: RGBWS6 ch
10: RGBAWS7 ch
11: DIM RGBS5 ch
12: DIM RGBWS6 ch
13: DIM RGBAWS7 ch
14: RGB CCT DIM IND S7 ch
15: Effect Mode Fix13 ch
16: Effect Mode RGB12 ch
89: Dim CCT GM Crossfade RGB7 ch
90: Dim CCT GM Hue Sat5 ch
91: Dim16 CCT GM Crossfade RGB7 ch
92: Dim16 CCT GM Hue Sat5 ch
93: Dim16 XY3 ch
94: Dim CCT GM Crossfade RGB Strobe8 ch
95: Dim CCT GM Hue Sat Strobe6 ch
96: Dim16 CCT GM Hue Sat Strobe6 ch
97: Dim16 XY Strobe4 ch
137: Dim16 CCT GM Crossfade RGB Strobe8 ch
168: Dim CCT GM Crossfade XY6 ch
169: Dim16 CCT GM Crossfade XY6 ch
170: Dim CCT GM Crossfade XY Strobe7 ch
171: Dim16 CCT GM Crossfade XY Strobe7 ch
18: 2Pix RGB6 ch
20: 2Pix RGBAW10 ch
26: 2Pix RGB Strobe8 ch
28: 2Pix RGBAW Strobe12 ch
66: 3Pix RGB9 ch
68: 3Pix RGBAW15 ch
74: 3Pix RGB Strobe11 ch
76: 3Pix RGBAW Strobe17 ch
42: 6Pix RGB18 ch
44: 6Pix RGBAW30 ch
50: 6Pix RGB Strobe20 ch
52: 6Pix RGBAW Strobe32 ch
