Helios Tube
Astera
#648Short Name: HELIOS

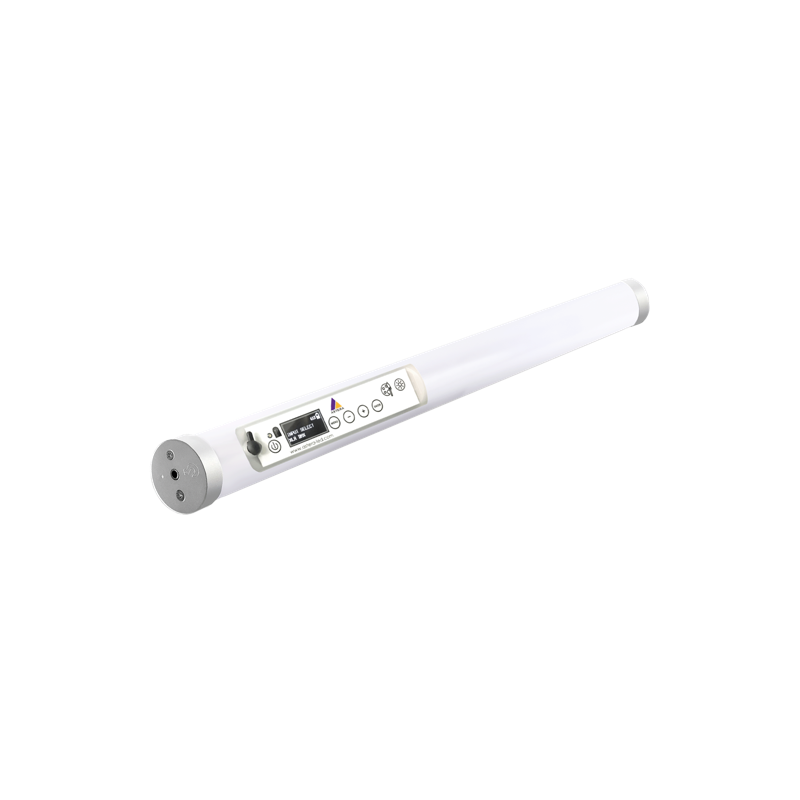

“Astera FP2 Helios Tube is a 0.5m compact wireless LED tube with Titan LED Engine (36W), 8 pixels, CRI/TLCI 96+, and IP65 rating.”
Physical
Weight0.77 kg
Length550 mm
Width42 mm
Height42 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.36 W
Voltage24V - 24V
Frequency---
ConnectorDC Barrel
Optical & Wheels
SourceBar / Batten
EmittersTitan LED Engine (RGB + Mint + Amber, 8 Pixels)
Lumens1,340 lm
CRI96
Zoom Min180°
Zoom Max180°
Color Wheels1 [151]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1: RGB4 ch
2: RGBW5 ch
3: RGBAW6 ch
4: DIM RGB4 ch
5: DIM RGBW5 ch
6: DIM RGBAW6 ch
7: RGB CCT DIM IND6 ch
8: RGBS5 ch
9: RGBWS6 ch
10: RGBAWS7 ch
11: DIM RGBS5 ch
12: DIM RGBWS6 ch
13: DIM RGBAWS7 ch
14: RGB CCT DIM IND S7 ch
15: Effect Mode Fix13 ch
16: Effect Mode RGB12 ch
89: Dim CCT GM Crossfade RGB7 ch
90: Dim CCT GM Hue Sat5 ch
91: Dim16 CCT GM Crossfade RGB7 ch
92: Dim16 CCT GM Hue Sat5 ch
93: Dim16 XY3 ch
94: Dim CCT GM Crossfade RGB Strobe8 ch
95: Dim CCT GM Hue Sat Strobe6 ch
96: Dim16 CCT GM Hue Sat Strobe6 ch
97: Dim16 XY Strobe4 ch
137: Dim16 CCT GM Crossfade RGB Strobe8 ch
168: Dim CCT GM Crossfade XY6 ch
169: Dim16 CCT GM Crossfade XY6 ch
170: Dim CCT GM Crossfade XY Strobe7 ch
171: Dim16 CCT GM Crossfade XY Strobe7 ch
18: 2Pix RGB6 ch
19: 2Pix RGBW8 ch
33: 2Pix RGBS8 ch
35: 2Pix RGBWS10 ch
66: 4Pix RGB12 ch
67: 4Pix RGBW16 ch
81: 4Pix RGBS16 ch
83: 4Pix RGBWS20 ch
42: 8Pix RGB24 ch
43: 8Pix RGBW32 ch
57: 8Pix RGBS32 ch
59: 8Pix RGBWS40 ch
107: 2Pix Dim CCT GM Crossfade RGB Strobe12 ch
120: 8Pix Dim CCT GM Crossfade RGB Strobe48 ch
133: 4Pix Dim CCT GM Crossfade RGB Strobe24 ch
