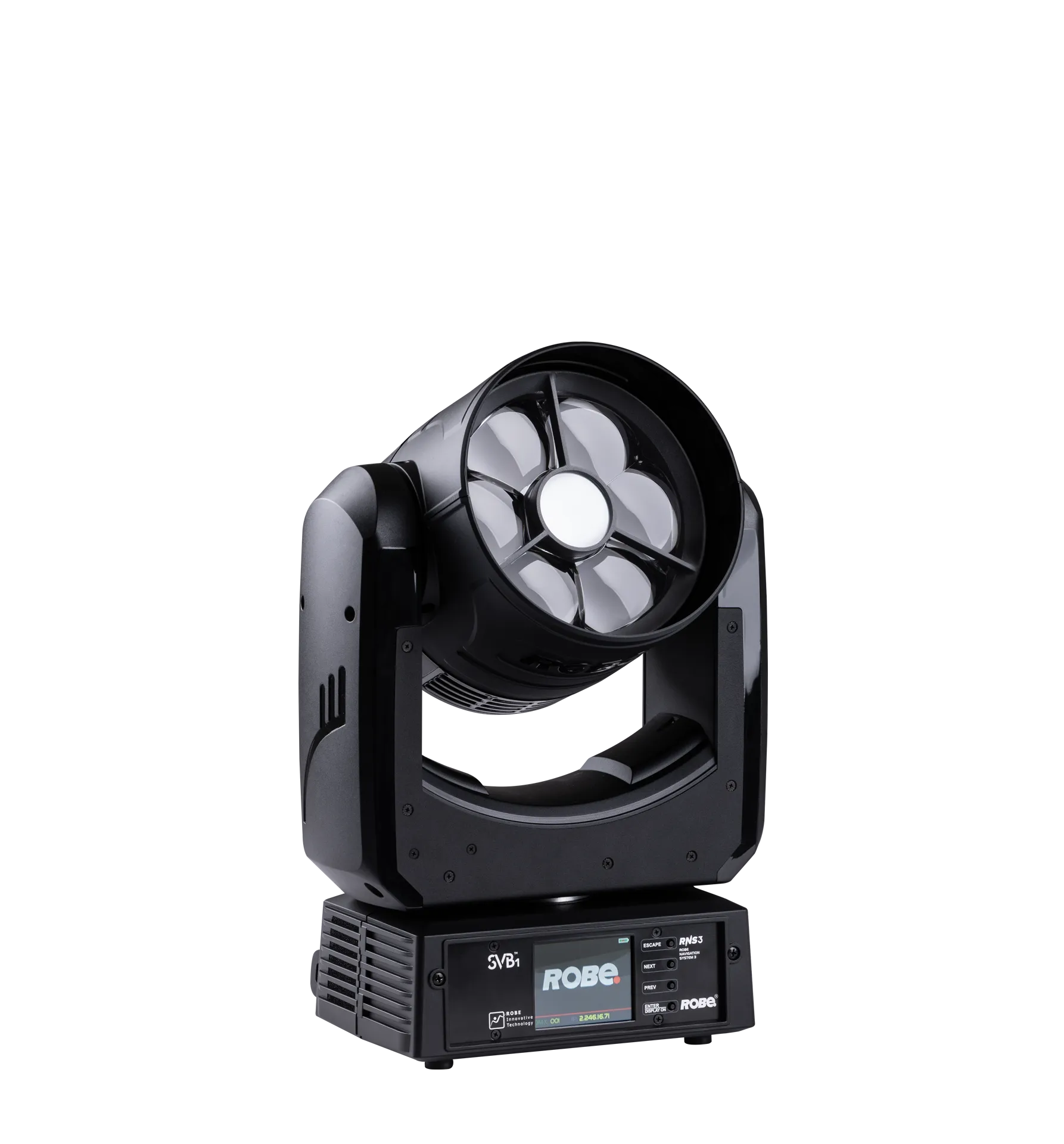

SVB1 4Bar
Robe Lighting
#6410Short Name: SVB14BAR
“This fixture profile includes only the 4Bar; please patch the SVB1 fixtures separately”
Physical
Weight34 kg
Length1050 mm
Width280 mm
Height450 mm
IP RatingIP20
Temp Low-50°C
Temp High50°C
Electrical
Power Consump.1300 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW (4x SVB1 Array Bar with Continuous Pan/Tilt per head)
Lumens44,000 lm
CRI---
Zoom Min3.8°
Zoom Max50°
Color Wheels---
Gobo Wheels---
Movement
Pan Range360°
Tilt Range360°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard68 ch
Enhanced104 ch
