AX1 PixelTube
Astera
#639Short Name: AX1

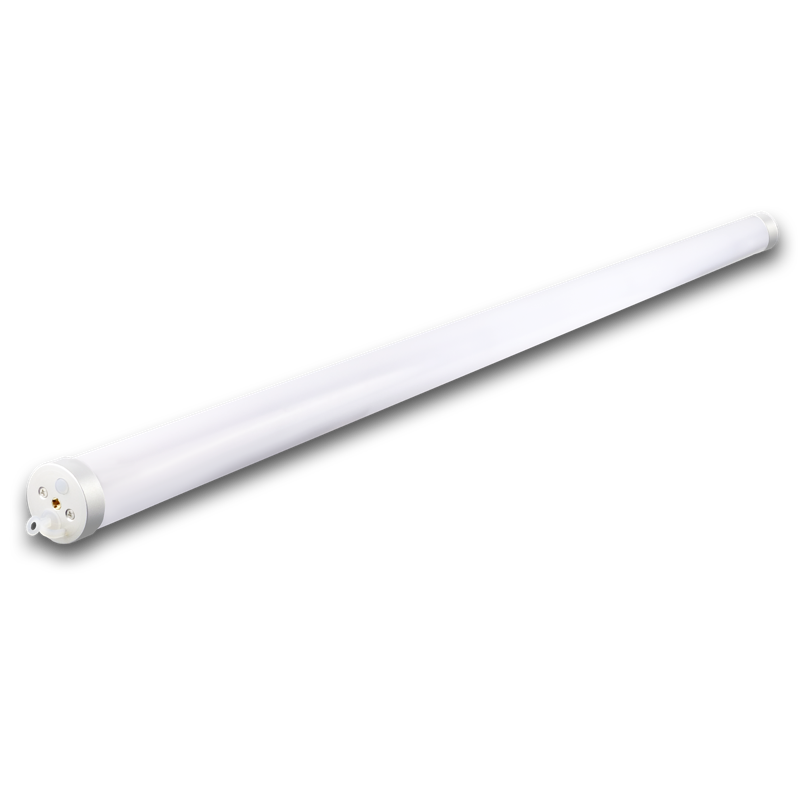

“Astera AX1 PixelTube is the original 28W wireless LED tube featuring RGBW color mixing, 16 individually controllable pixels, and IP65 rating.”
Physical
Weight1 kg
Length1035 mm
Width42 mm
Height42 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.28 W
Voltage24V - 24V
Frequency---
ConnectorDC Barrel
Optical & Wheels
SourceBar / Batten
EmittersRGBW LED Engine (16 Pixels)
Lumens695 lm
CRI85
Zoom Min180°
Zoom Max180°
Color Wheels1 [151]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1: RGB4 ch
2: RGBW5 ch
3: RGBAW6 ch
4: DIM RGB4 ch
5: DIM RGBW5 ch
6: DIM RGBAW6 ch
7: RGB CCT DIM IND6 ch
8: RGBS5 ch
9: RGBWS6 ch
10: RGBAWS7 ch
11: DIM RGBS5 ch
12: DIM RGBWS6 ch
13: DIM RGBAWS7 ch
14: RGB CCT DIM IND S7 ch
15: Effect Mode Fix13 ch
16: Effect Mode RGB12 ch
89: Dim CCT GM Crossfade RGB7 ch
90: Dim CCT GM Hue Sat5 ch
91: Dim16 CCT GM Crossfade RGB7 ch
92: Dim16 CCT GM Hue Sat5 ch
93: Dim16 XY3 ch
94: Dim CCT GM Crossfade RGB Strobe8 ch
95: Dim CCT GM Hue Sat Strobe6 ch
96: Dim16 CCT GM Hue Sat Strobe6 ch
97: Dim16 XY Strobe4 ch
137: Dim16 CCT GM Crossfade RGB Strobe8 ch
168: Dim CCT GM Crossfade XY6 ch
169: Dim16 CCT GM Crossfade XY6 ch
170: Dim CCT GM Crossfade XY Strobe7 ch
171: Dim16 CCT GM Crossfade XY Strobe7 ch
18: 4Pix RGB12 ch
19: 4Pix RGBW16 ch
33: 4Pix RGBS16 ch
35: 4Pix RGBWS20 ch
66: 8Pix RGB24 ch
67: 8Pix RGBW32 ch
81: 8Pix RGBS32 ch
83: 8Pix RGBWS40 ch
42: 16Pix RGB48 ch
43: 16Pix RGBW64 ch
57: 16Pix RGBS64 ch
59: 16Pix RGBWS80 ch
107: 4Pix Dim CCT GM Crossfade RGB Strobe24 ch
120: 16Pix Dim CCT GM Crossfade RGB Strobe96 ch
133: 8Pix Dim CCT GM Crossfade RGB Strobe48 ch
