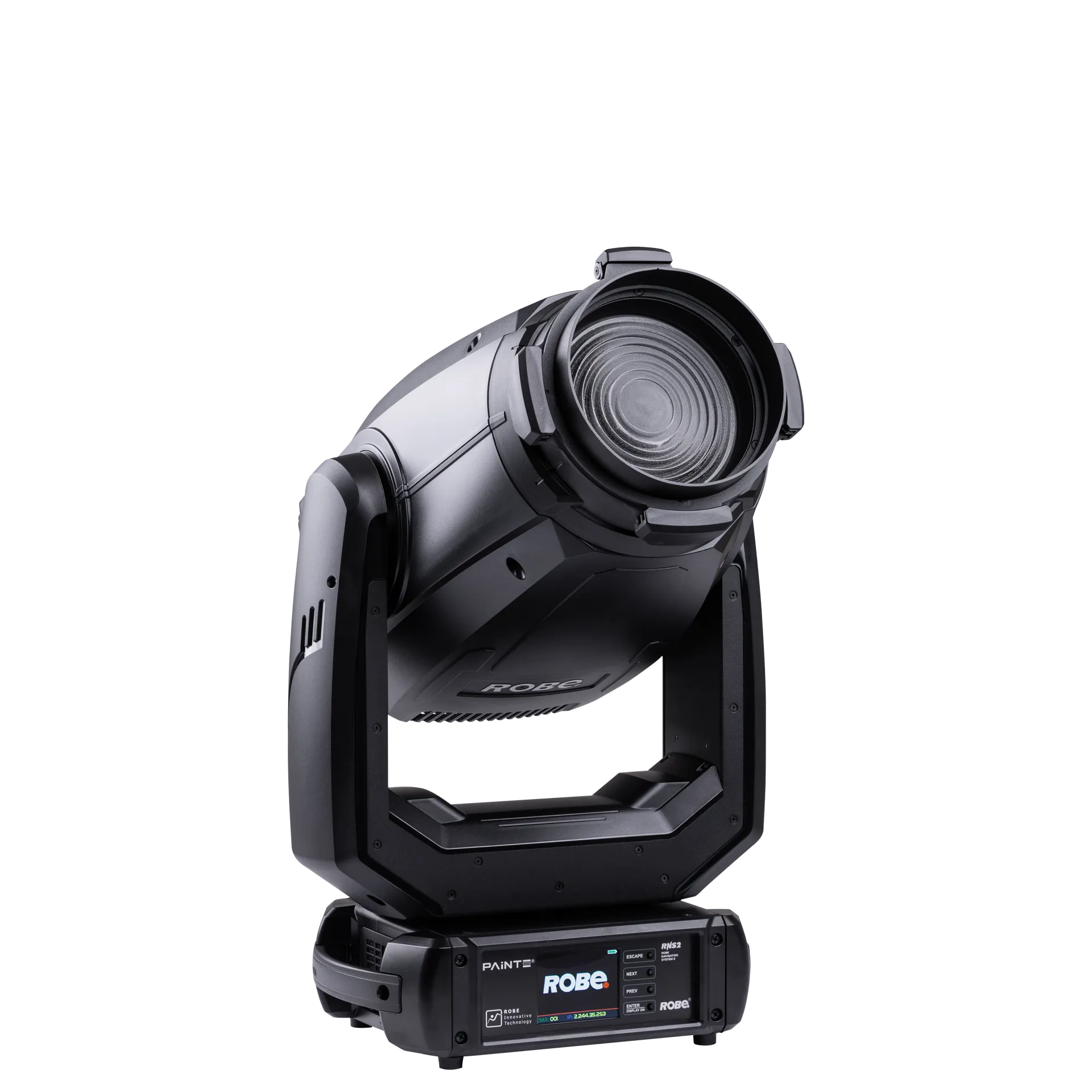

Painte Fresnel

Painte Fresnel

Robe Lighting

#6361
Short Name: PAINTEFRESNEL

“Perfection is not limited by size. Our PAINTE® Fresnel delivers the perfect compact, quiet, quality wash solution for short to medium-throw applications in theatrical, television, installation, live or corporate settings to create your masterpiece! Artists require a vast colour palette. PAINTE® Fresnel colours are boundless with the advanced CMY colour mixing system, a colour wheel featuring nine dichroic colours, variable CTO and ChromaTint™ green/magenta content control. Designed for noise-sensitive environments with an appropriate suite of fan controls, PAINTE® Fresnel features a choice of TE™ 310W HP (High Performance) White LED for maximised output of 10.850 lm or TE™ 310W HCF (High Colour Fidelity) engines for the best possible colour rendition with an inherent CRI of 96. TRANSFERABLE ENGINE technology gives you interchangeable task-specific solutions, combined with the ability to maintain light quality and consistency across your inventory. With all the softness of a classic Fresnel beam, the motorised 8.3:1 ratio zoom produces a range of 6°- 50° from its 150mm Fresnel lens, making it the perfect compact wash luminaire.”

Physical

Weight18.1 kg
Length334 mm
Width392 mm
Height612 mm
IP RatingIP20
Temp Low-5°C
Temp High45°C

Electrical

Power Consump.440 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR5, RJ45

Optical & Wheels

SourceWash / PAR
EmittersCMY + Variable CTO + Color Wheel (9 colors + open) Fresnel Wash
Lumens13,500 lm
CRI70
Zoom Min6°
Zoom Max50°
Color Wheels2 [10 | 67]
Gobo Wheels---

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard31 ch
Basic26 ch
