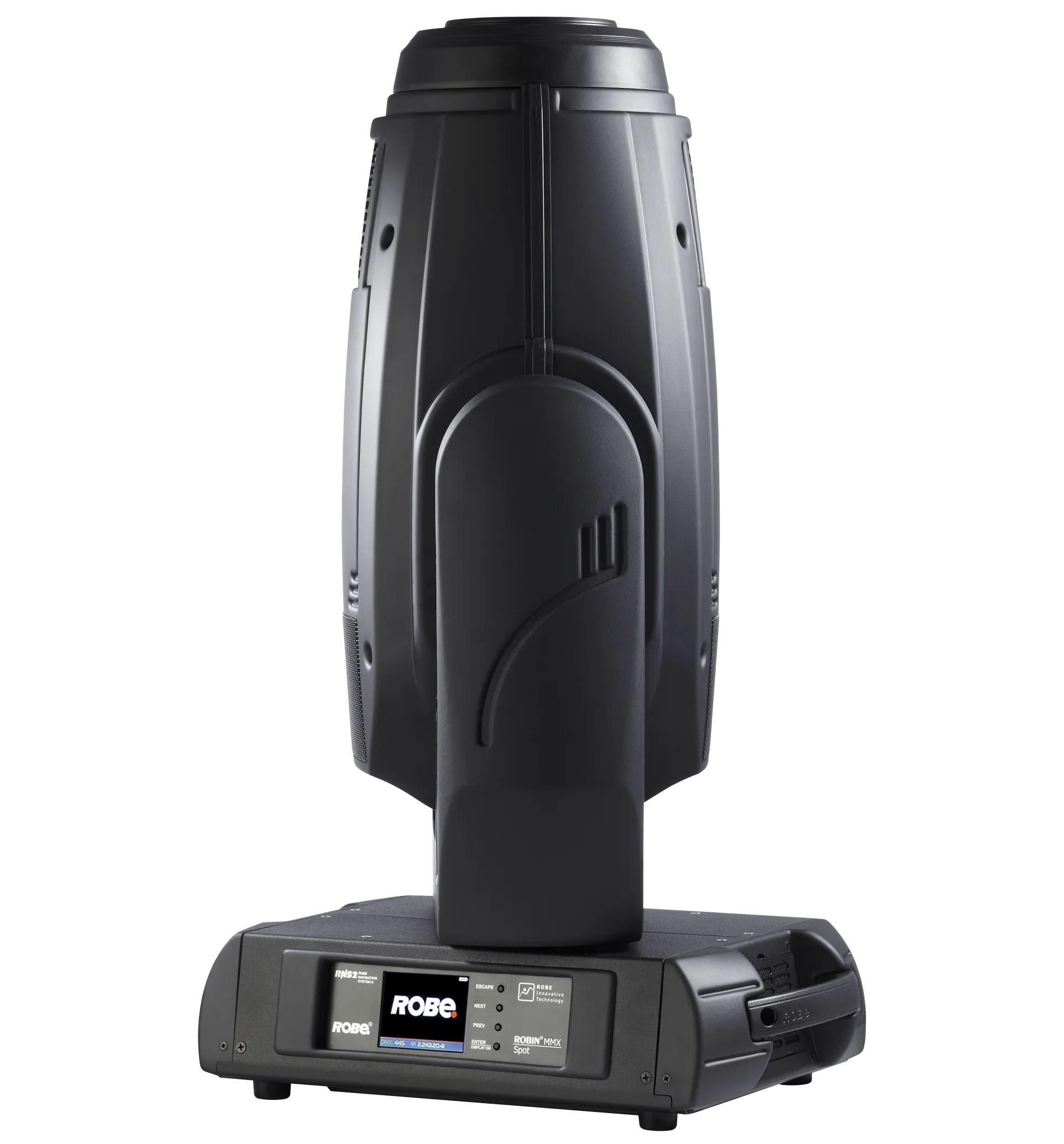

MMX Spot

MMX Spot

Robe Lighting

#6358
Short Name: MMXSPOT

“The unit is based on the all new Robin advanced technology design that provides Brighter, more efficient, physically lighter and smaller fixtures than previously possible. The MMX includes the Robe exclusive Hot-Spot lamp control feature that allows remote adjustment of flat beam uniformity or power beam hot-spot. Key feature of the MMX is the 'Dual Graphics Wheel' - 2 fully controllable contra-rotating plates that can be positioned anywhere across the light path to produce unique visual effects.”

Physical

Weight25.5 kg
Length435 mm
Width446 mm
Height722 mm
IP RatingIP20
Temp Low-5°C
Temp High45°C

Electrical

Power Consump.1020 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5

Optical & Wheels

SourceSpot
EmittersCMY + Variable CTO + Color Wheel (6 colors + open)
Lumens26,141 lm
CRI85
Zoom Min8.5°
Zoom Max46.5°
Color Wheels2 [7 | 2]
Gobo Wheels3 [8 | 8 | 3]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard38 ch
Enhanced43 ch
Basic30 ch
