iBolt

iBolt

Robe Lighting

#6322
Short Name: IBOLT

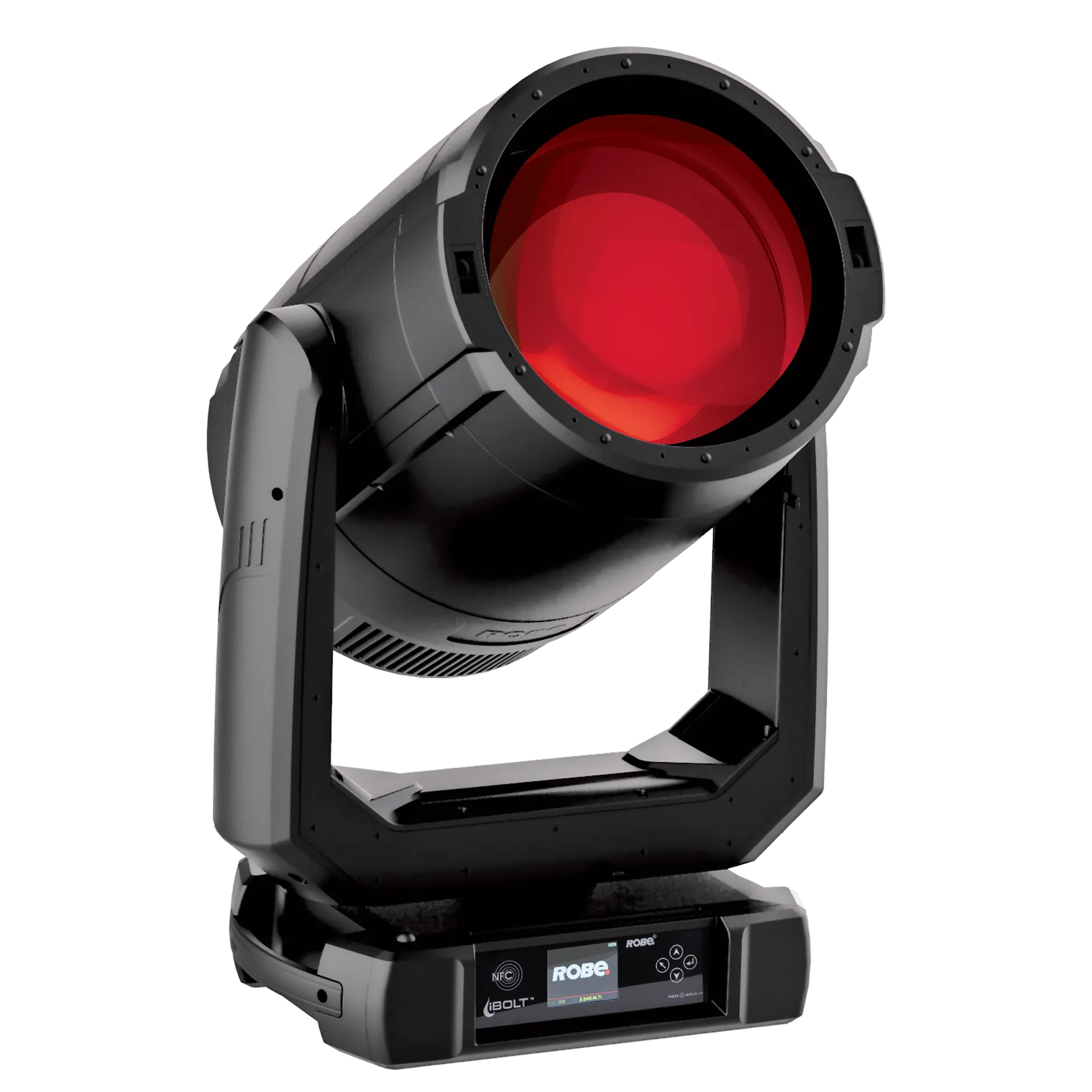

“Note: The iBolt cannot be programmed in the Stage mode and then used in the Sky mode and vice versa! iBOLT™ The time has come to replace your antiquated discharge sourced outdoor aerial effect luminaires with a new generation Searchlight and Skyflower fixture, to make outdoor lighting statements like never before!”

Physical

Weight54.4 kg
Length482 mm
Width528 mm
Height843 mm
IP RatingIP65
Temp Low-50°C
Temp High50°C

Electrical

Power Consump.700 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR5, RJ45

Optical & Wheels

SourceBeam
EmittersWhite Laser Phosphor (500W White Laser Phosphor Engine with CMY + Dual Color Wheels)
Lumens26,800 lm
CRI70
Zoom Min0.4°
Zoom Max8.5°
Color Wheels4 [67 | 14 | 4 | 4]
Gobo Wheels2 [15 | 10]

Movement

Pan Range540°
Tilt Range265°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Standard38 ch
Basic31 ch
