PlutoFresnel AF80
Astera
#632Short Name: PLUTOFRESNEL

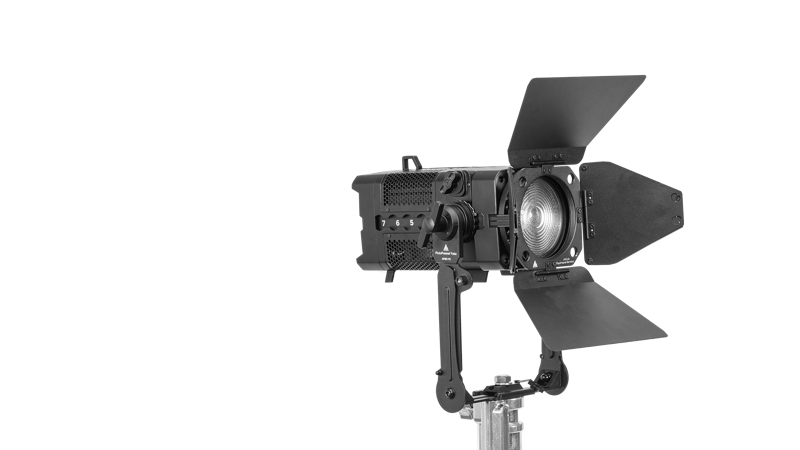

“Astera AF80 PlutoFresnel is an ultra-compact 80W battery/mains powered LED Fresnel with Titan LED Engine, 15° to 60° zoom, and IP65 rating.”
Physical
Weight4.5 kg
Length283 mm
Width161 mm
Height153 mm
IP RatingIP65
Temp Low0°C
Temp High40°C
Electrical
Power Consump.80 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorDC Barrel, XLR5
Optical & Wheels
SourceFresnel
EmittersTitan LED Engine (RGB + Mint + Amber)
Lumens3,250 lm
CRI96
Zoom Min15°
Zoom Max60°
Color Wheels1 [151]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
1: RGB4 ch
2: RGBW5 ch
3: RGBAW6 ch
4: DIM RGB4 ch
5: DIM RGBW5 ch
6: DIM RGBAW6 ch
7: RGB CCT DIM IND6 ch
8: RGBS5 ch
9: RGBWS6 ch
10: RGBAWS7 ch
11: DIM RGBS5 ch
12: DIM RGBWS6 ch
13: DIM RGBAWS7 ch
14: RGB CCT DIM IND S7 ch
15: Effect Mode Fix13 ch
16: Effect Mode RGB12 ch
89: Dim CCT GM Crossfade RGB7 ch
90: Dim CCT GM Hue Sat5 ch
91: Dim16 CCT GM Crossfade RGB7 ch
92: Dim16 CCT GM Hue Sat5 ch
93: Dim16 XY3 ch
94: Dim CCT GM Crossfade RGB Strobe8 ch
95: Dim CCT GM Hue Sat Strobe6 ch
96: Dim16 CCT GM Hue Sat Strobe6 ch
97: Dim16 XY Strobe4 ch
137: Dim16 CCT GM Crossfade RGB Strobe8 ch
168: Dim CCT GM Crossfade XY6 ch
169: Dim16 CCT GM Crossfade XY6 ch
170: Dim CCT GM Crossfade XY Strobe7 ch
171: Dim16 CCT GM Crossfade XY Strobe7 ch
