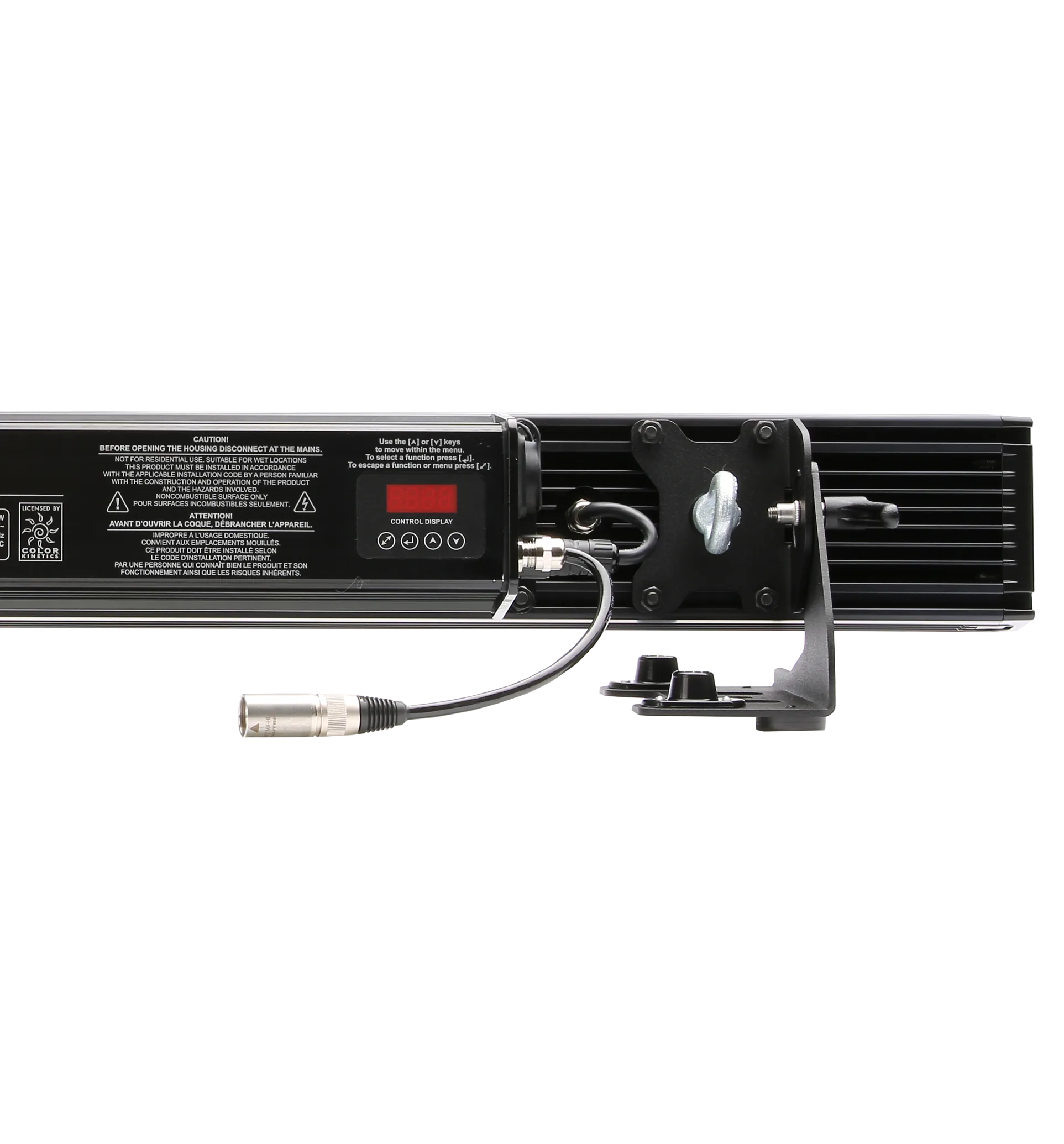

CycBar 15
Robe Lighting
#6278Short Name: CYCBAR15
“CycBar 15 is a lightweight static 1.000 mm linear strip which uses 15 equally spaced, super bright RGBW multichip LEDs for enhanced 18-bit smooth colour mixing and linear dimming without RGB breakup or grey shadows.”
Physical
Weight11.1 kg
Length997 mm
Width179 mm
Height182 mm
IP RatingIP20
Temp Low-10°C
Temp High40°C
Electrical
Power Consump.170 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW (15x 10W RGBW LED Multi-Chip Linear Batten)
Lumens3,580 lm
CRI---
Zoom Min35°
Zoom Max70°
Color Wheels1 [248]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 116 ch
Mode 211 ch
Mode 361 ch
Mode 476 ch
