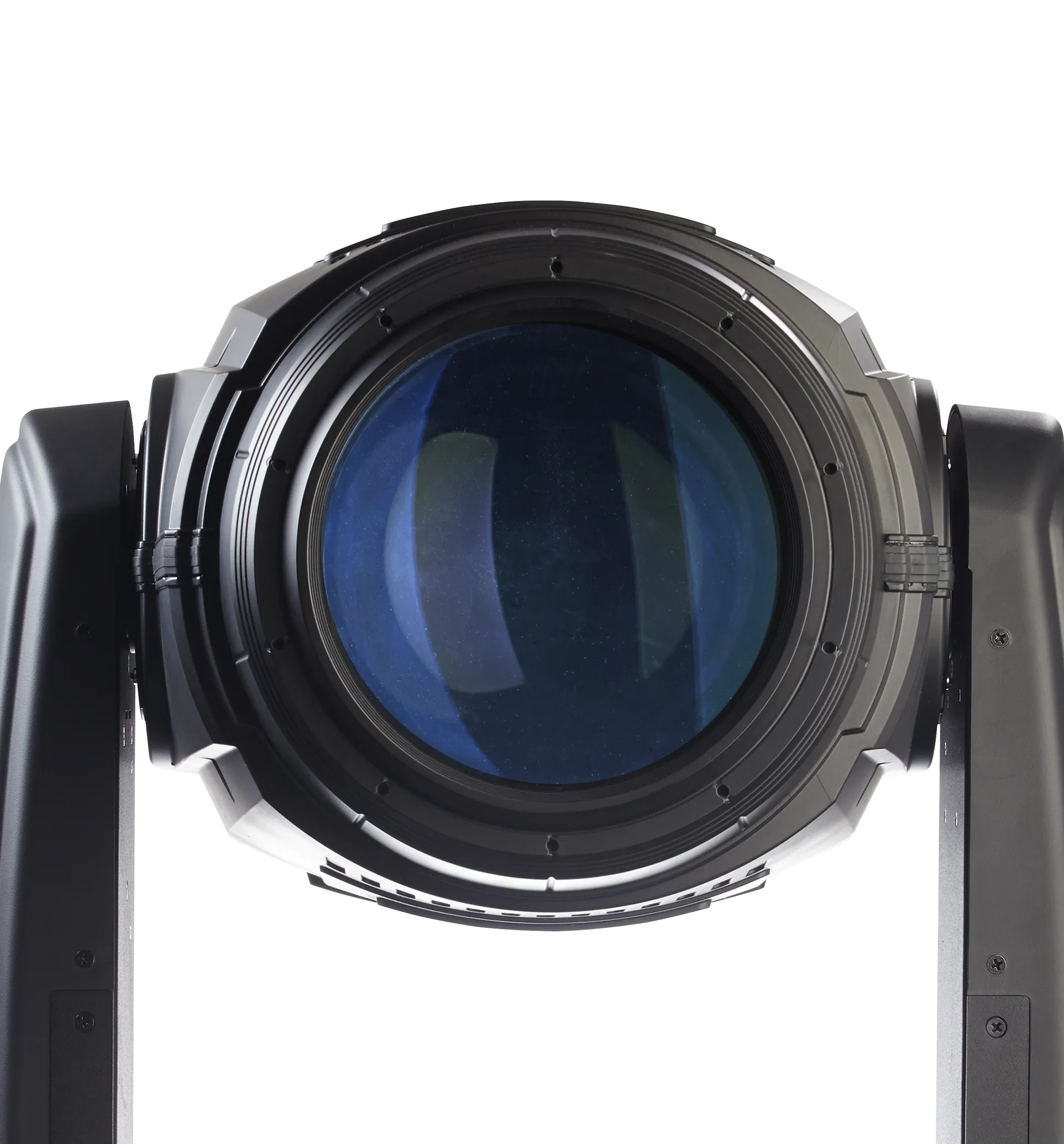

BMFL Blade
Robe Lighting
#6267Short Name: BMFLBLADE
“Four fast shutter blades with smooth and precise movement in the new BMFL Blade lighting fixture. Individually angled and positioned within a frame - which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image.”
Physical
Weight37.9 kg
Length482 mm
Width483 mm
Height812 mm
IP RatingIP20
Temp Low-5°C
Temp High45°C
Electrical
Power Consump.2000 W
Voltage200V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON TRUE1, XLR3, XLR5
Optical & Wheels
SourceProfile
EmittersCMY + Dual Color Wheels (2x 6 colors + open)
Lumens40,000 lm
CRI92
Zoom Min5°
Zoom Max55°
Color Wheels4 [7 | 7 | 3 | 96]
Gobo Wheels3 [9 | 7 | 2]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard49 ch
Basic42 ch
