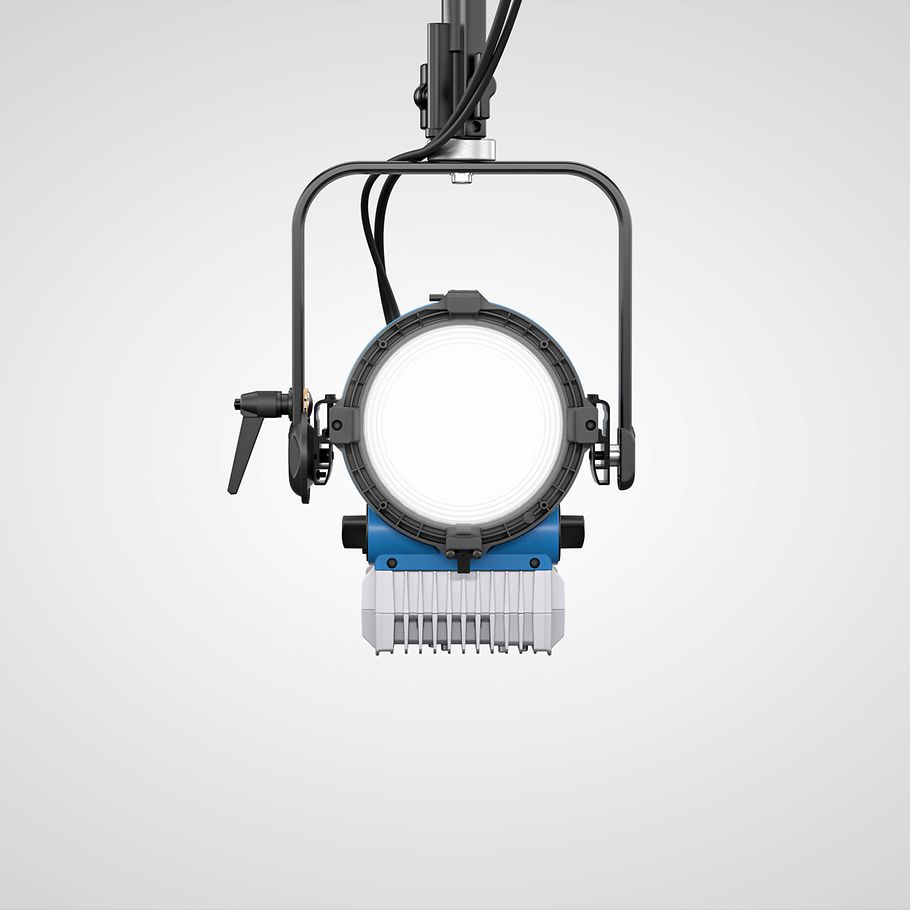

L7-C Plus Fresnel
ARRI
#595Short Name: L7-C Plus
“Second-generation LED Fresnel, up to 90% brighter than the original L7-C at very similar size and weight. 7-inch Fresnel lens, 12-47deg beam angle, tunable 2800-10000K with RGBW color mixing, +/-100K nominal accuracy, +/-1/8 green-magenta adjustment. Direct network connectivity via LAN input, Art-Net and sACN control. Available in blue-silver or all-black, manual or pole-operated yoke.”
Physical
Weight8.7 kg
Length423 mm
Width374 mm
Height454 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.220 W
Voltage---
Frequency---
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceFresnel
EmittersARRI LED Light Engine (RGBW)
Lumens14,000 lm
CRI95
Zoom Min15°
Zoom Max50°
Color Wheels1 [21]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 CCT+RGBW 8Bit12 ch
Mode 1 CCT+RGBW ECC 8Bit20 ch
Mode 2 - CCT 8Bit7 ch
Mode 2 - CCT ECC 8Bit15 ch
Mode 3 - CCT+HSI 8Bit10 ch
Mode 3 - CCT+HSI ECC 8Bit18 ch
Mode 4 - RGBW 8Bit9 ch
Mode 4 - RGBW ECC 8Bit17 ch
Mode 5- HSI 8Bit7 ch
Mode 5- HSI ECC 8Bit15 ch
Mode 6 - CCT+RGBW 16Bit12 ch
Mode 6 - CCT+RGBW ECC 16Bit20 ch
Mode 7 - CCT 16Bit7 ch
Mode 7 - CCT ECC 16Bit15 ch
Mode 8 - CCT+HSI 16Bit10 ch
Mode 8 - CCT+HSI ECC 16Bit18 ch
Mode 9 - RGBW 16Bit9 ch
Mode 9 - RGBW ECC 16Bit17 ch
Mode 10 - HSI 16Bit7 ch
Mode 10 - HSI ECC 16Bit15 ch
Mode 16 - Gels 8Bit12 ch
Mode 16 - Gels ECC 8Bit20 ch
Mode 17 - Gels 16Bit12 ch
Mode 17 - Gels ECC 16Bit20 ch
Mode 18 - XY 8Bit9 ch
Mode 18 - XY ECC 8Bit17 ch
Mode 19 - XY 16Bit9 ch
Mode 19 - XY ECC 16Bit17 ch
Mode 20 - Source Match 8Bit8 ch
Mode 20 - Source Match ECC 8Bit16 ch
Mode 21 - Source Match 16Bit8 ch
Mode 21 - Source Match ECC 16Bit16 ch
Mode 22 - Effects 8Bit12 ch
Mode 22 - Effects ECC 8Bit20 ch
Mode 23 - Effects 16Bit12 ch
Mode 23 - Effects ECC 16Bit20 ch
Mode 24 - LE CCT+RGBW 8Bit9 ch
Mode 25 - LE CCT+RGBW 16Bit9 ch
Mode 26 - LE HSI 8Bit4 ch
Mode 27 - LE HSI 16Bit4 ch
Mode 28 - LE XY 8Bit4 ch
Mode 29 - LE XY 16Bit4 ch
Mode 30 - Ultimate 8Bit15 ch
Mode 30 - Ultimate ECC 8Bit23 ch
