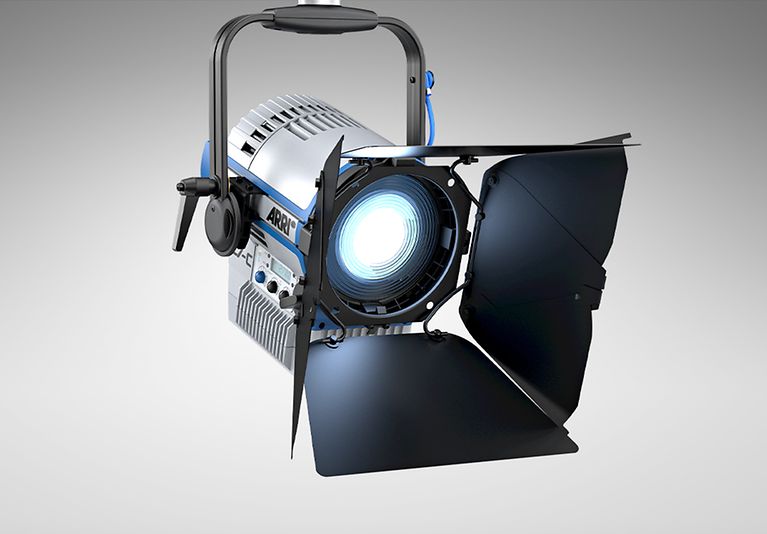

L7-C Fresnel
ARRI
#594Short Name: L7-C
“Fully color-tunable LED Fresnel, 7-inch lens, producing the light equivalent of an 800-1000W tungsten Fresnel while drawing only 160W nominal. Tunable 2800-10000K with RGBW color mixing, hue/saturation control, plus/minus green adjustment. Extruded aluminum yoke, optional pole-operated version, active fan cooling, DMX/RDM with feedback channel, USB firmware updates.”
Physical
Weight8.2 kg
Length571 mm
Width374 mm
Height351 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.160 W
Voltage90V - 250V
Frequency---
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceFresnel
EmittersARRI LED Light Engine (RGBW)
Lumens10,000 lm
CRI94
Zoom Min15°
Zoom Max50°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 CCT+RGBW 8Bit8 ch
Mode 2 CCT 8Bit3 ch
Mode 3 CCT+HSI 8Bit6 ch
Mode 4 RGBW 8Bit5 ch
Mode 5 HSI 8Bit3 ch
Mode 6 CCT+RGBW 16Bit8 ch
Mode 7 CCT 16Bit3 ch
Mode 8 CCT+HSI 16Bit6 ch
Mode 9 RGBW 16Bit5 ch
Mode 10 HSI 16Bit3 ch
