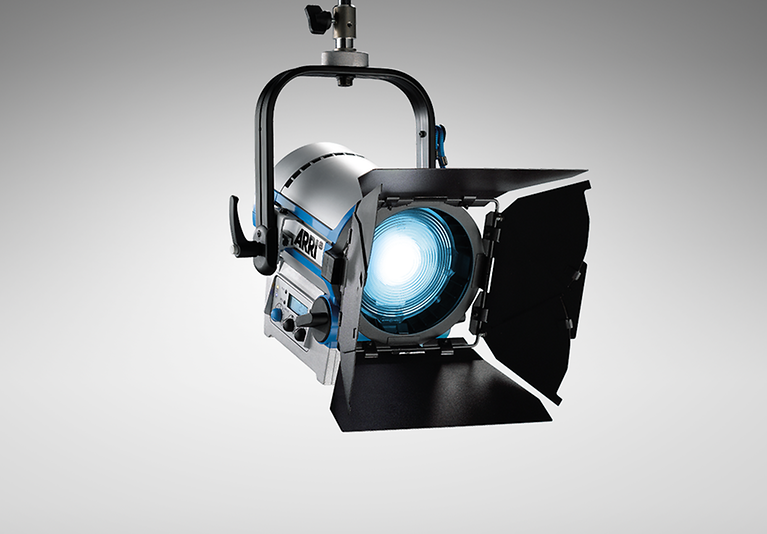

L5-C Fresnel
ARRI
#592Short Name: L5-C
“Compact, lightweight LED Fresnel, smallest in the L-Series, producing the equivalent of a 300-450W tungsten Fresnel while drawing only 115W. Tunable 2800-10000K with RGBW color mixing, hue/saturation control, plus/minus green adjustment. PowerCON power connector plus on-board battery input for industry-standard batteries, DMX/RDM control, USB firmware updates.”
Physical
Weight5.1 kg
Length220 mm
Width240 mm
Height373 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.115 W
Voltage---
Frequency---
ConnectorpowerCON, XLR5, etherCON
Optical & Wheels
SourceFresnel
EmittersARRI LED Light Engine (RGBW)
Lumens5,500 lm
CRI95
Zoom Min14°
Zoom Max50°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 1 CCT+RGBW 8Bit8 ch
Mode 2 CCT 8Bit3 ch
Mode 3 CCT+HSI 8Bit6 ch
Mode 4 RGBW 8Bit5 ch
Mode 5 HSI 8Bit3 ch
Mode 6 CCT+RGBW 16Bit8 ch
Mode 7 CCT 16Bit3 ch
Mode 8 CCT+HSI 16Bit6 ch
Mode 9 RGBW 16Bit5 ch
Mode 10 HSI 16Bit3 ch
