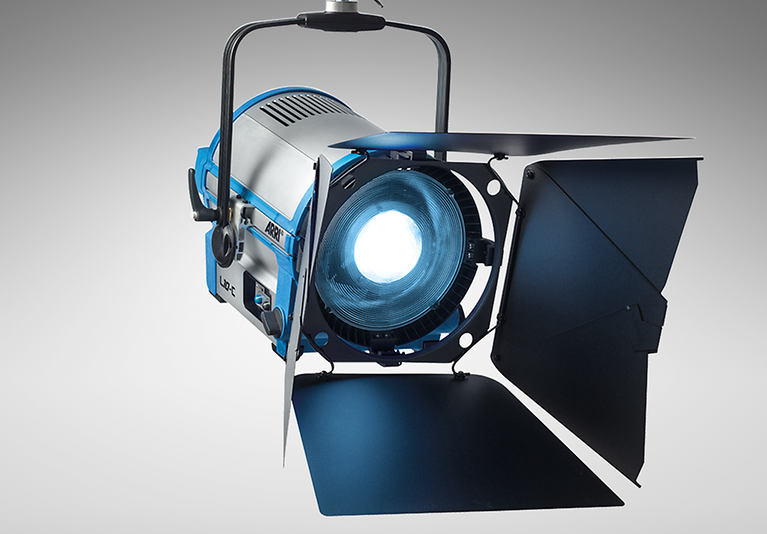

L10-C Fresnel
ARRI
#591Short Name: L10-C
“Brightest and largest L-Series lamphead, more than twice the brightness of the L7-C. 10-inch (274mm) true Fresnel lens, fully color-tuneable 2800-10000K with RGBW color mixing, hue/saturation control, plus/minus green adjustment. Robust aluminum + fiberglass-reinforced housing, upgradeable light engine and firmware (USB port). Bright as a 2,000W tungsten Fresnel while consuming only 400W nominal.”
Physical
Weight19.7 kg
Length581 mm
Width490 mm
Height560 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.500 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorPowerCON TRUE1 TOP; 5-Pin DMX In/Out; USB (firmware)
Optical & Wheels
SourceFresnel
EmittersARRI LED Light Engine (RGBW)
Lumens18,000 lm
CRI95
Zoom Min15°
Zoom Max50°
Color Wheels---
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
CCT 8-Bit3 ch
HSI 8-Bit5 ch
CCT & RGBW 8-Bit6 ch
RGBW 8-Bit8 ch
CCT & RGBW 16-Bit16 ch
